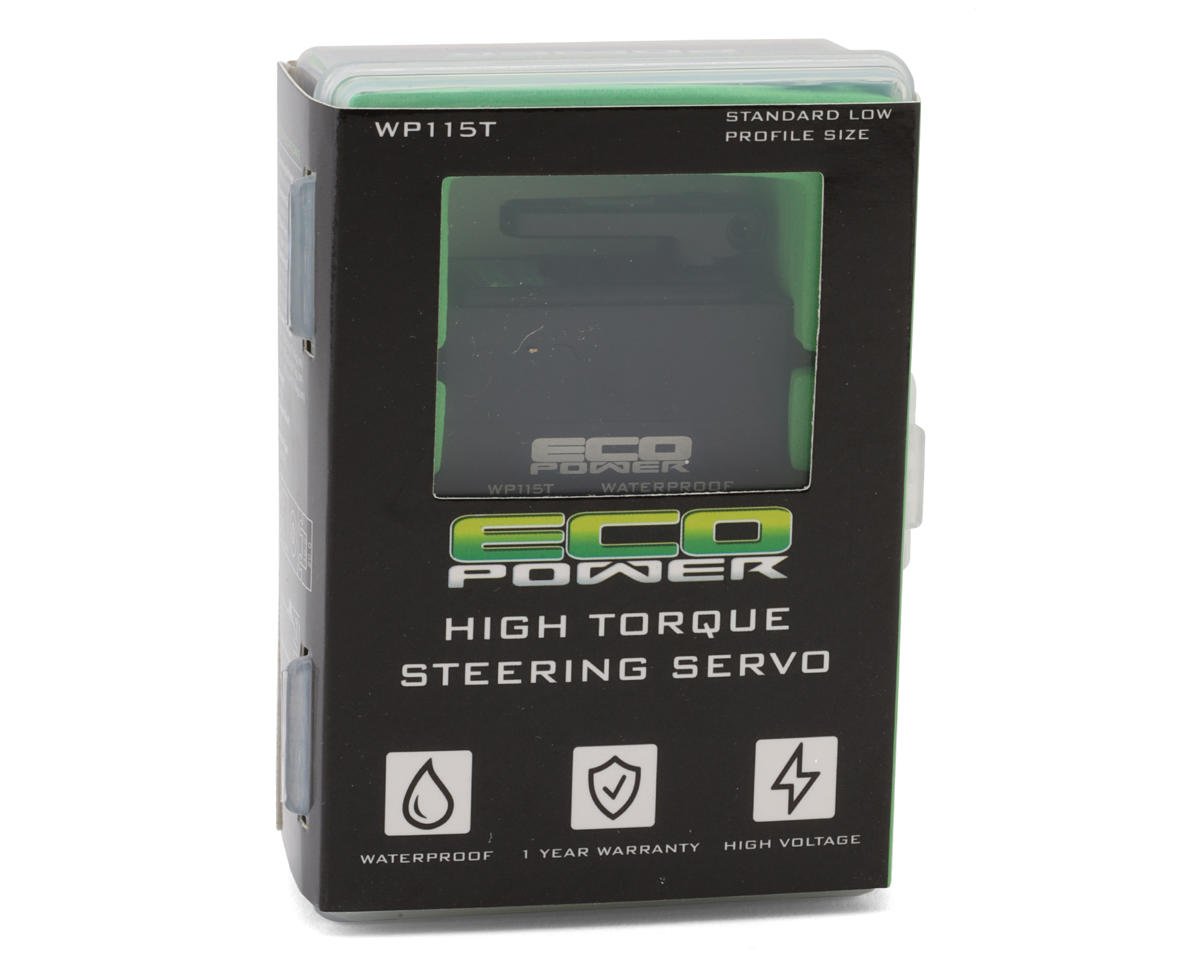

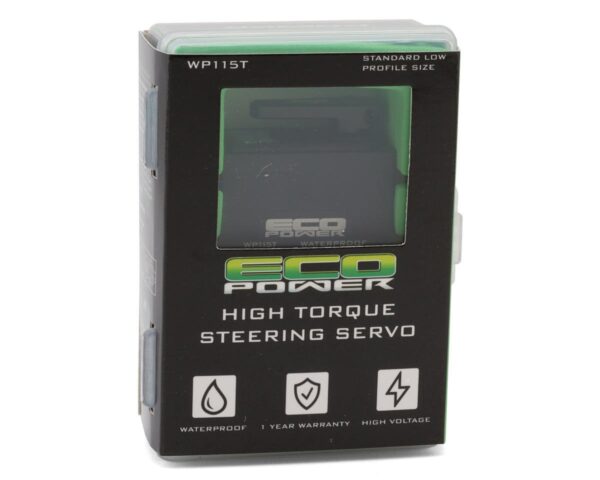

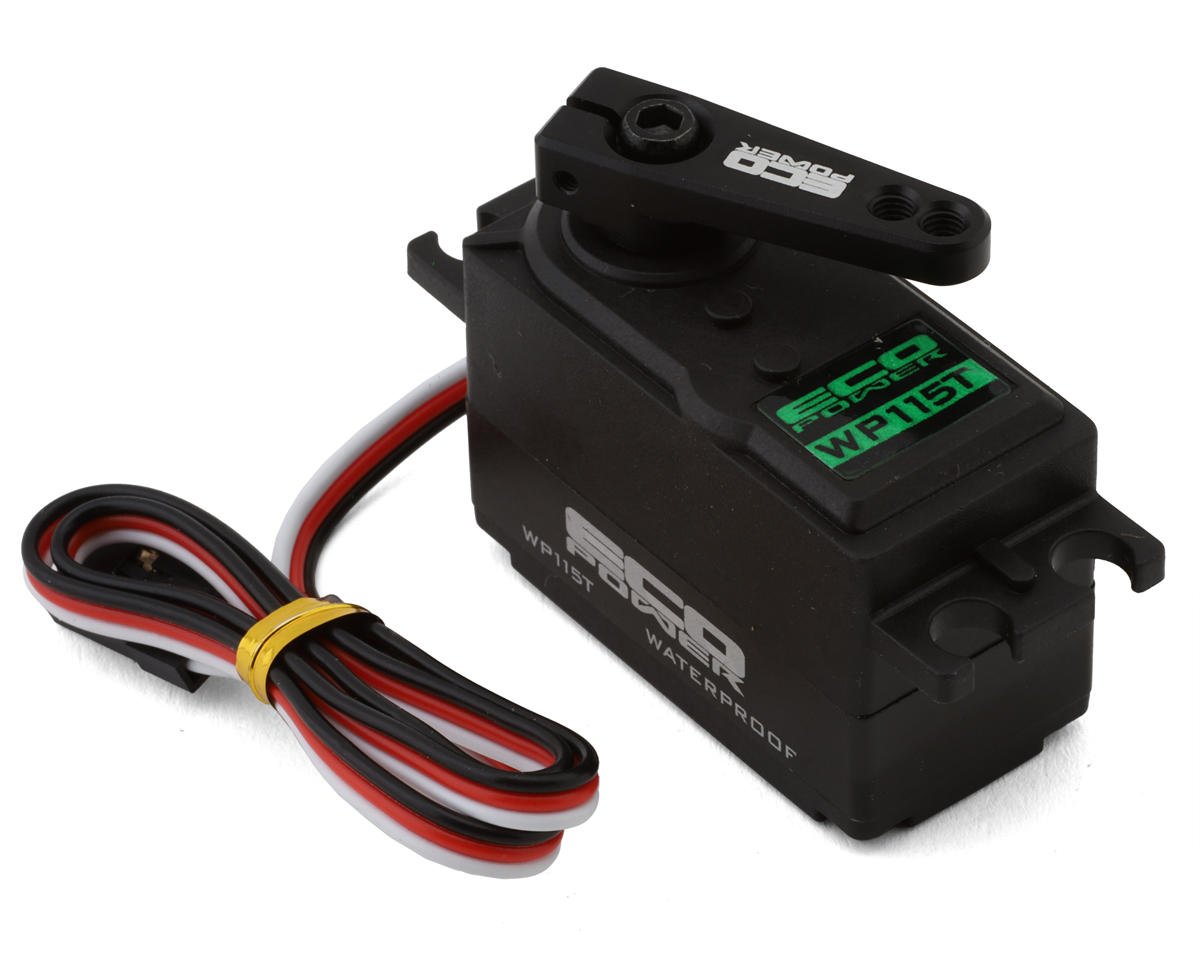

The EcoPower WP115T Low Profile High Torque Waterproof Metal Gear Servo, is an excellent option when you need an affordable, high voltage low profile servo. The EcoPower 115T servo has been designed for 1/10 2WD Buggies, 1/10 Drift Cars or as a Shift/Dig servo. The servo features smooth ball bearing control and a durable, metal gear drivetrain. Package includes one servo, one servo mount set, five molded servo horns and hardware.
Features:
- Affordable option for 2WD applications or as a shift/dig servo
- 178 oz-in of torque @7.4V, and .08/60° sec transit speed
- Waterproof
- Digital circuitry
- Cored DC motor
- All metal gear drivetrain

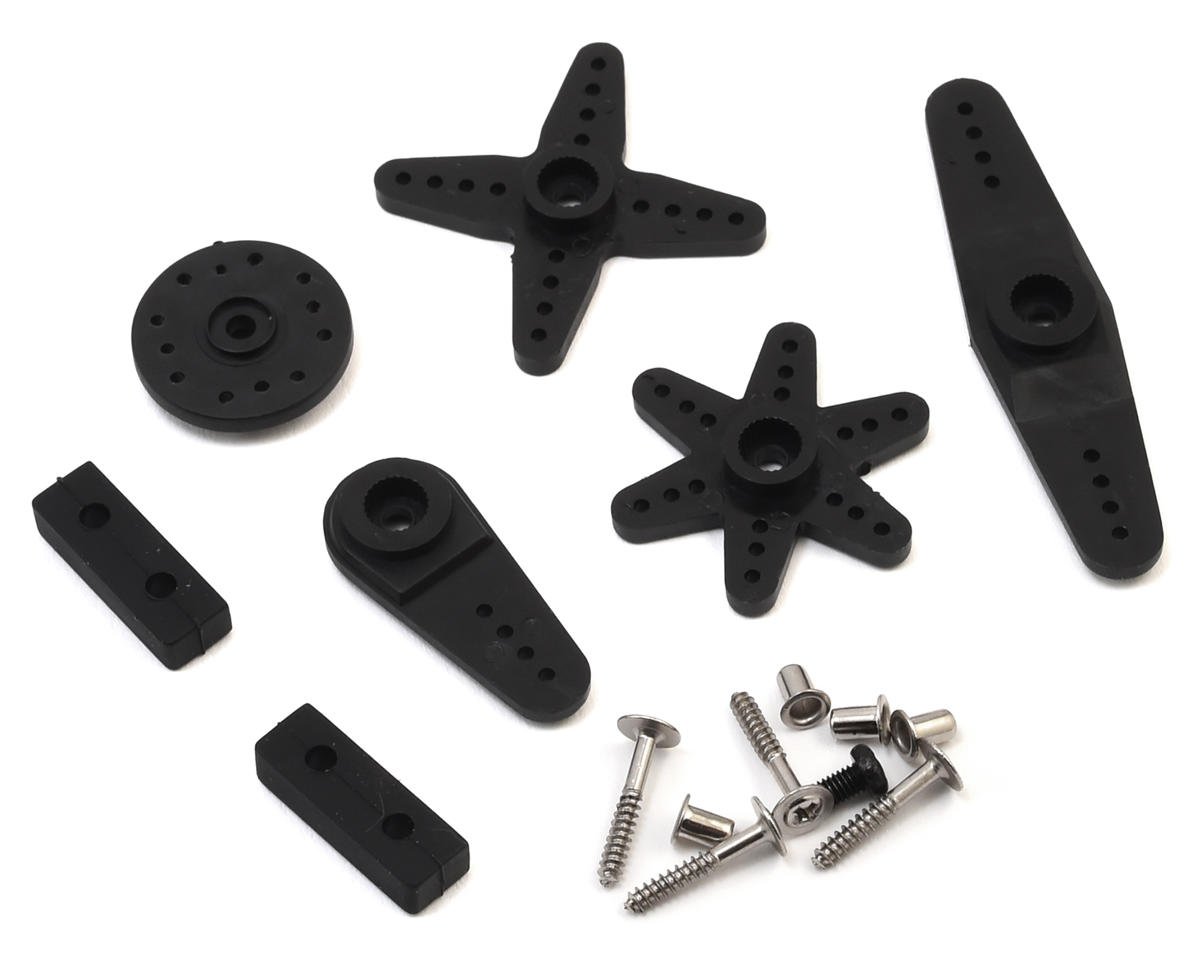

- Includes molded star, 4 way, dual, single and round arm type servo horns and mounting hardware
- 1 Year warranty against manufacturer defects*
*NOTE: Warranty does not cover stripped gears or damage caused by abuse.
| Servo Model |
115T Low Profile |
| Recommended Application | 1/10 On-Road & Off-Road |
| Waterproof |
Yes |
| Operating Voltage | 4.8V – 7.4V |
| Operating Speed @ 4.8V | 0.13/60° sec |
| Operating Speed @ 6.0V | 0.10/60° sec |
| Operating Speed @ 7.4V | 0.08/60° sec |
| Dynamic Torque @ 4.8V | 108 oz-in (4.4 kg-cm) |
| Dynamic Torque @ 6.0V | 127 oz-in (6.4 kg-cm) |
| Dynamic Torque @ 7.4V | 178 oz-in (12.8 kg-cm) |
| Motor Type | Cored DC |
| Output Shaft | 25 Tooth |
| Gears | Metal |
| Weight | 44.5g |
| Dimensions | 41.2×20.0x32.8mm (LxWxH) |
NOTE: Be sure to set your End Point Adjustments when using this servo to ensure long life and performance. For more information on End Point Adjustments, please watch the video below.
This product was added to our catalog on August 31, 2022
