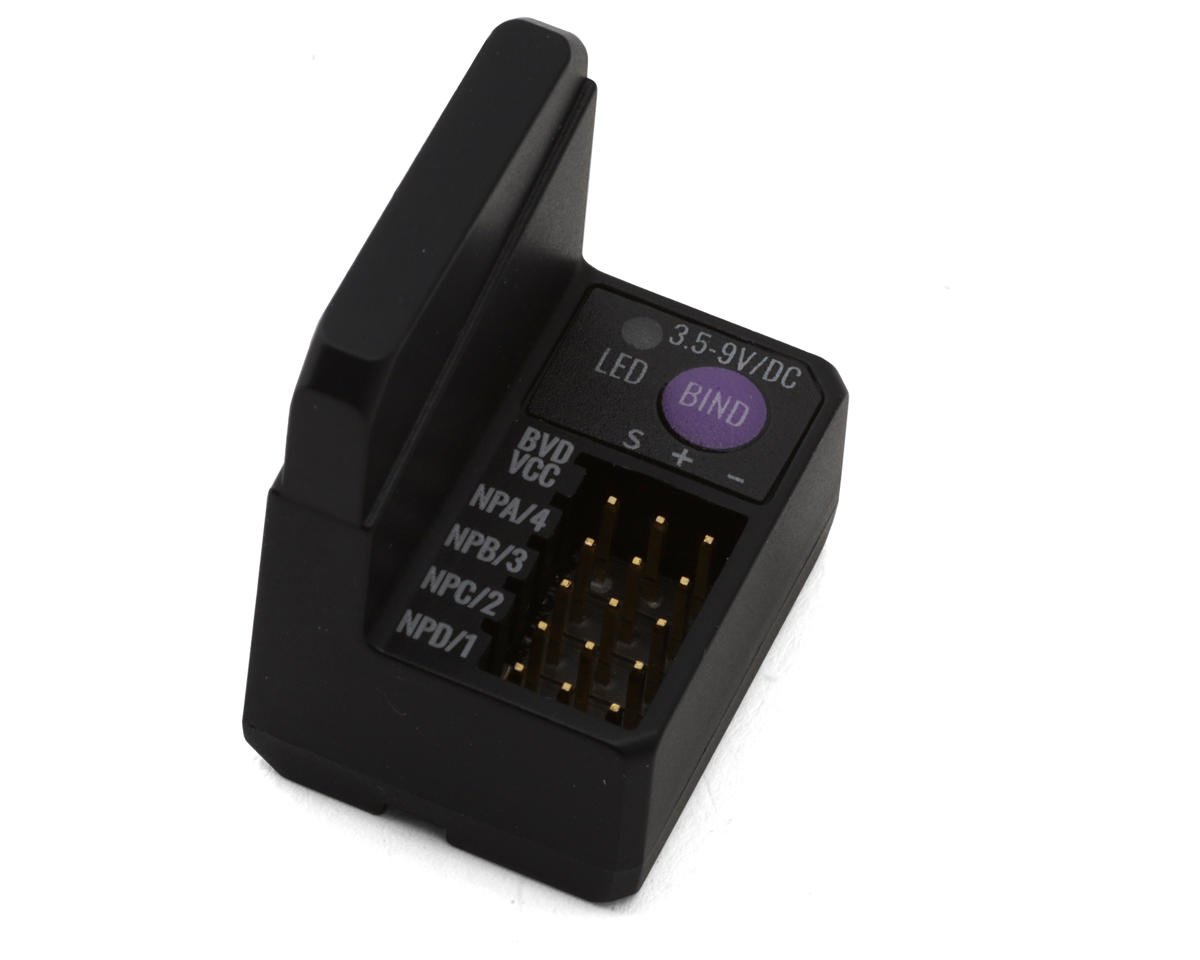

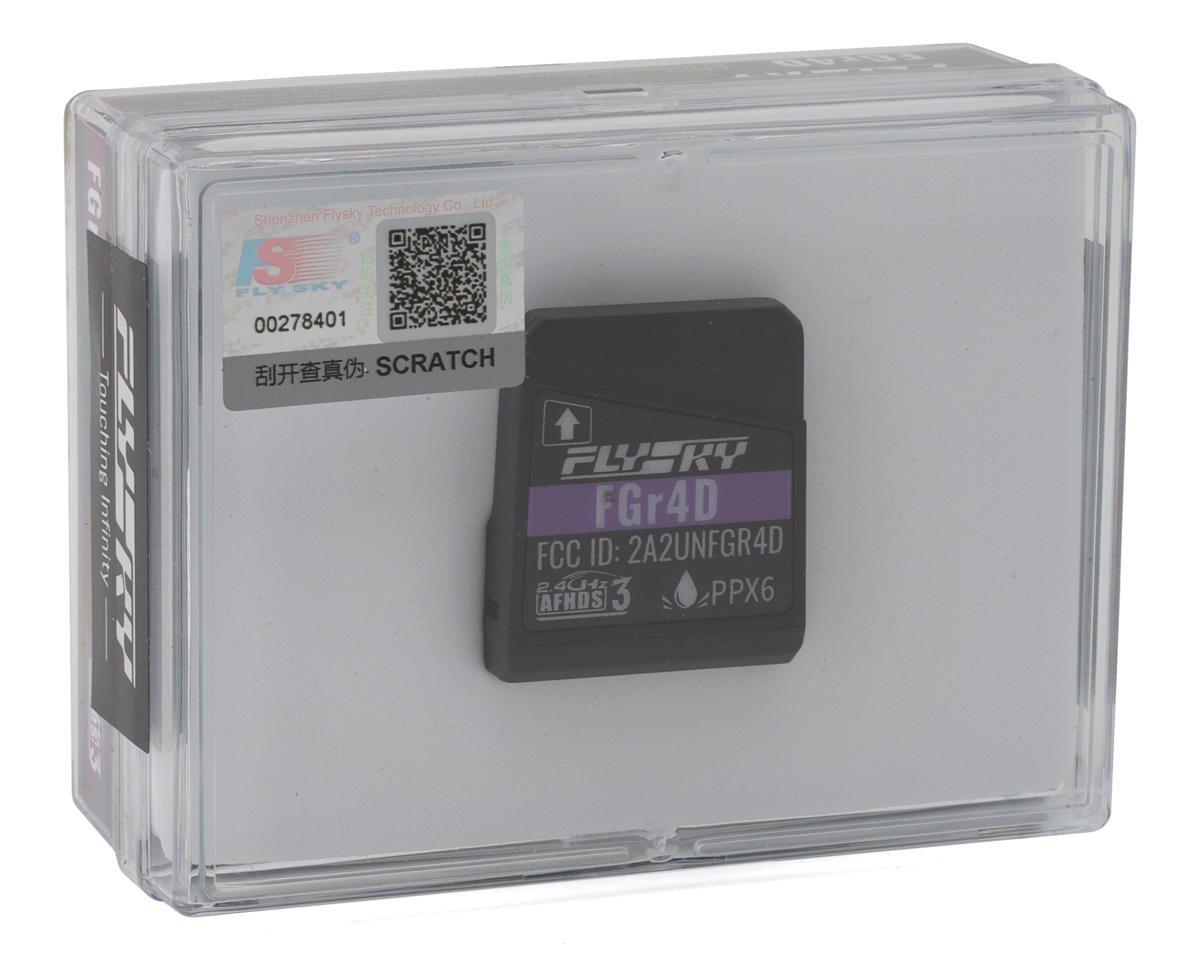

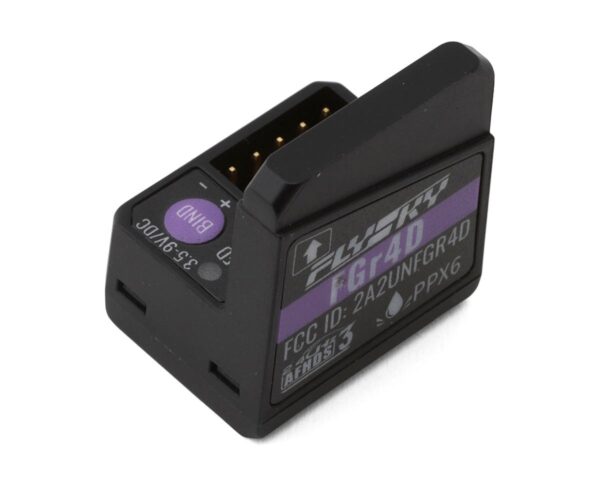

Flysky FGr4D 4-Channel AFHDS3 2.4GHz Receiver [FSY-FGR4D]

Receiver Overview:

FlySky FGr4D 2.4GHz 4-Channel AFHDS3 Receiver. The FGr4D is a four-channel, two-way receiver utilizing the AFHDS3 (Third Generation Automatic Frequency Hopping Digital System) protocol. Featuring dual antennas, a PPX6 o waterproof rating, and a compact, lightweight design, this receiver supports four Newport function interfaces. These interfaces can be customized for various signal types, including i-BUS2, S.BUS, i-BUS, and PPM. Additionally, the FGr4D can function as a PWM converter, making it ideal for use in model cars or boats.

Features:

• Seamless integration with compatible FlySky AFHDS3 Transmitters
• Lightweight and compact, making it suitable for a wide range of applications
• Easy-to-use bind button for quick and straightforward binding
• Operates efficiently within a wide voltage range, making it versatile for different power supply setups
• Fail-safe settings enhance safety by ensuring the model behaves predictably in case of signal loss
• Utilizes the AFHDS3 protocol

Specifications:

• Input Voltage: 3.5-9V
• Frequency: 2.4GHz
• Channels: 4Ch
• Protocol: AFHDS3
• Antenna: Dual
• Dimensions: 1.1×1.0x1.1in (30×25.8x20mm)
• Weight: 0.25oz (7.2g)

Includes:

• (1) FlySky FGr4D 4-Channel Receiver

This product was added to our catalog on August 9, 2024
