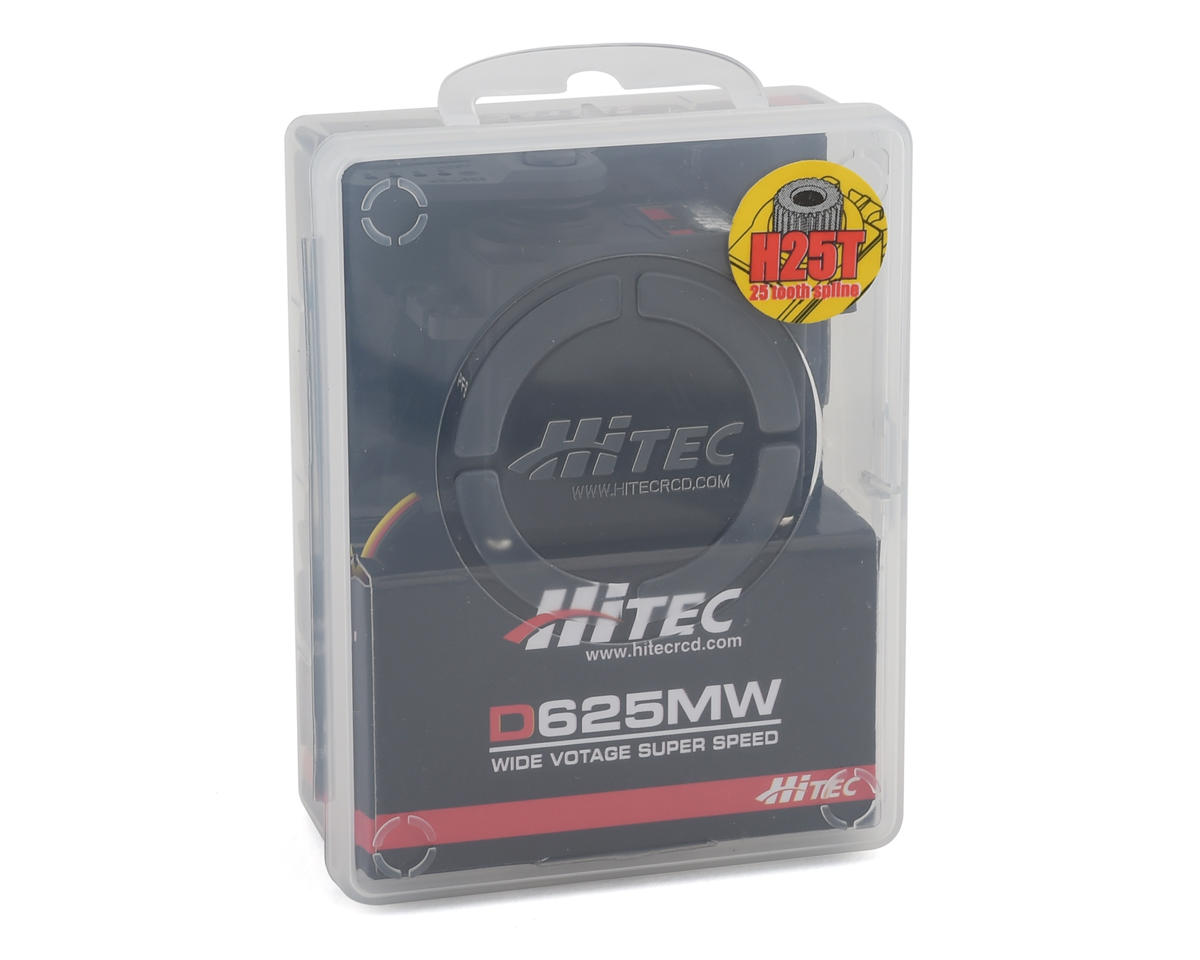

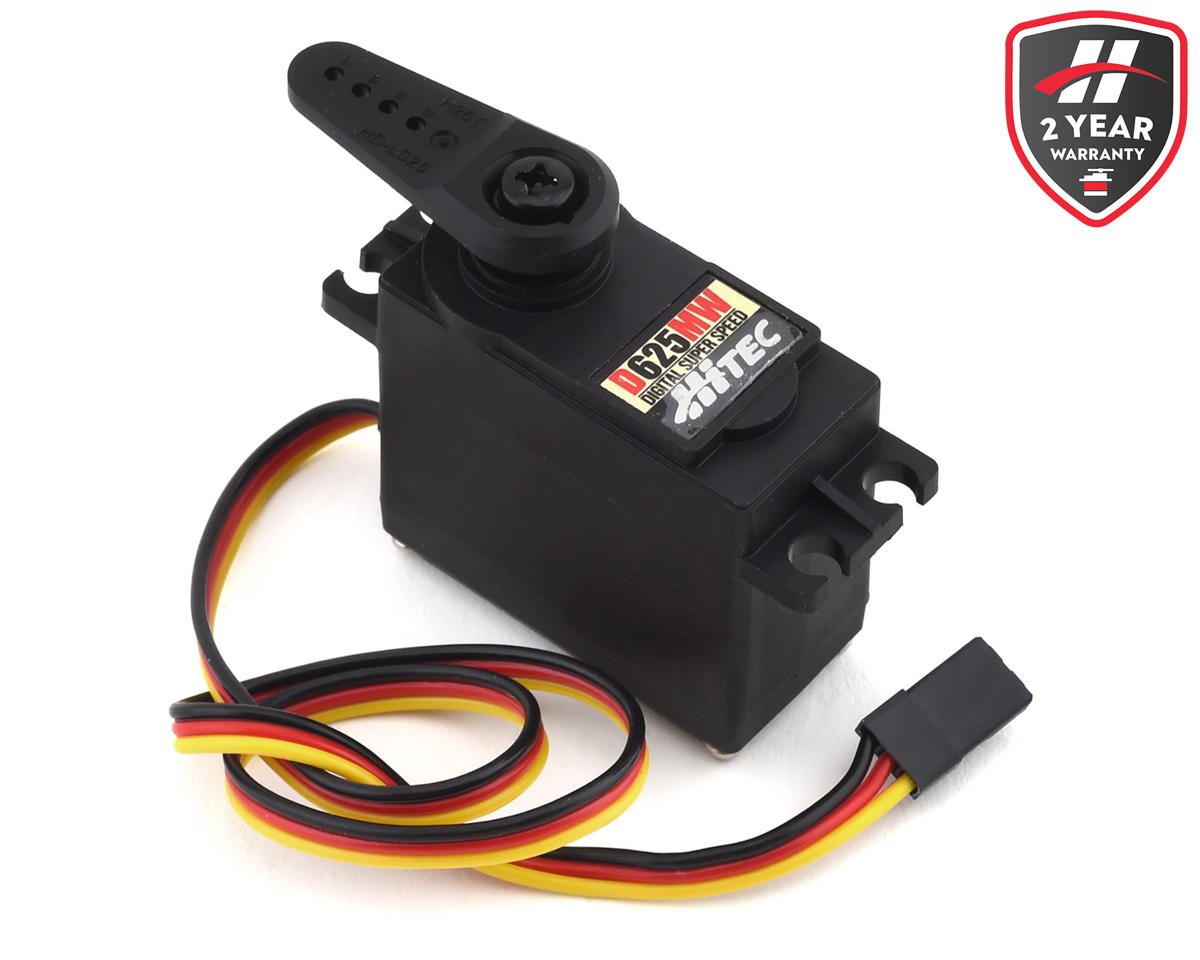

Hitec D625MW High Speed Metal Gear Servo (High Voltage) [HRC36625]

This is the Hitec High Votage D625MW High Speed Metal Gear Servo. The metal D-625MW is part of Hitecs D-Series servo line. All Hitec D-Series servos have been designed using Hitecs redesigned, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

Features:

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Specifications:

Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V

Speed (Second @ 60°): 0.20 ~ 0.15 ~ 0.13

Maximum Torque Range oz./in.: 87 ~ 122 ~ 139

Maximum Torque Range kg./cm.: 6.3 ~ 8.8 ~ 10.0

Current Draw at Idle: 30 mA

No Load Operating Current Draw: 500 mA

Stall Current Draw: 2,650 mA

Dead Band Width: 2 µs

Dimensions (Inches): 1.59 x 0.77 x 1.48

Dimensions (Metric): 40.6 x 19.8 x 37.8

Weight (Ounces): 2.11

Weight (Gram): 57.0

Circuit Type: 32bit Programable Digital

Motor Type: 3 Pole Metal Brush Ferrite

Gear Material: Metal

Bearing Type: Dual Ball Bearing

Output Shaft (type / Ømm): H25T

Case Material: Plastic

Dust/Water Resistance: N/A

Connector Gauge (AWG)/Strand Count: 22/60

Includes:

• Metal Gears Set
• Metal/Plastic 1st Gear Set
• Plastic Case Set

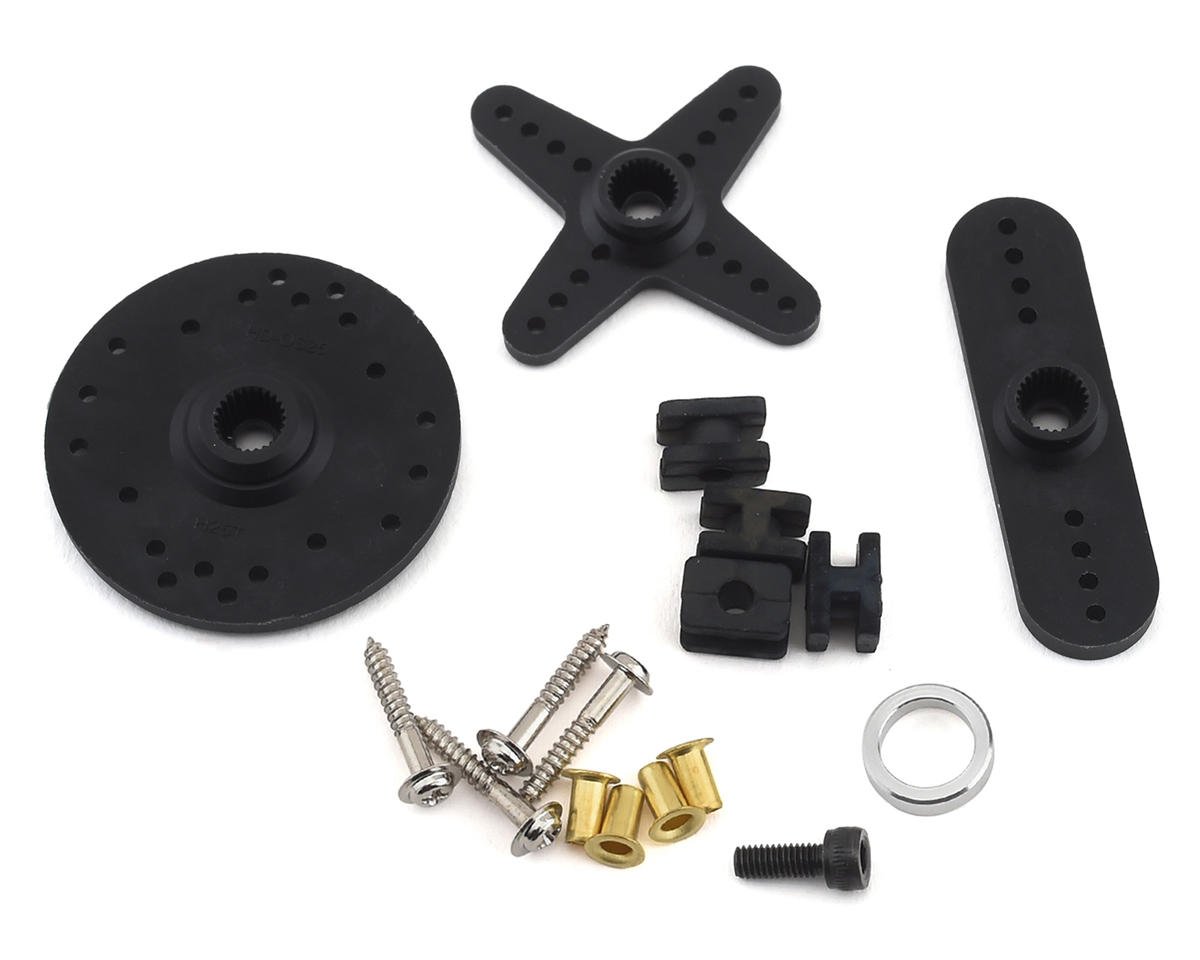

• Applicable Horns

Limited Warranty:

Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.

This product was added to our catalog on November 27, 2019
