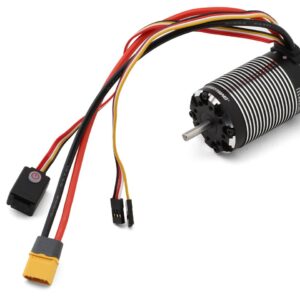

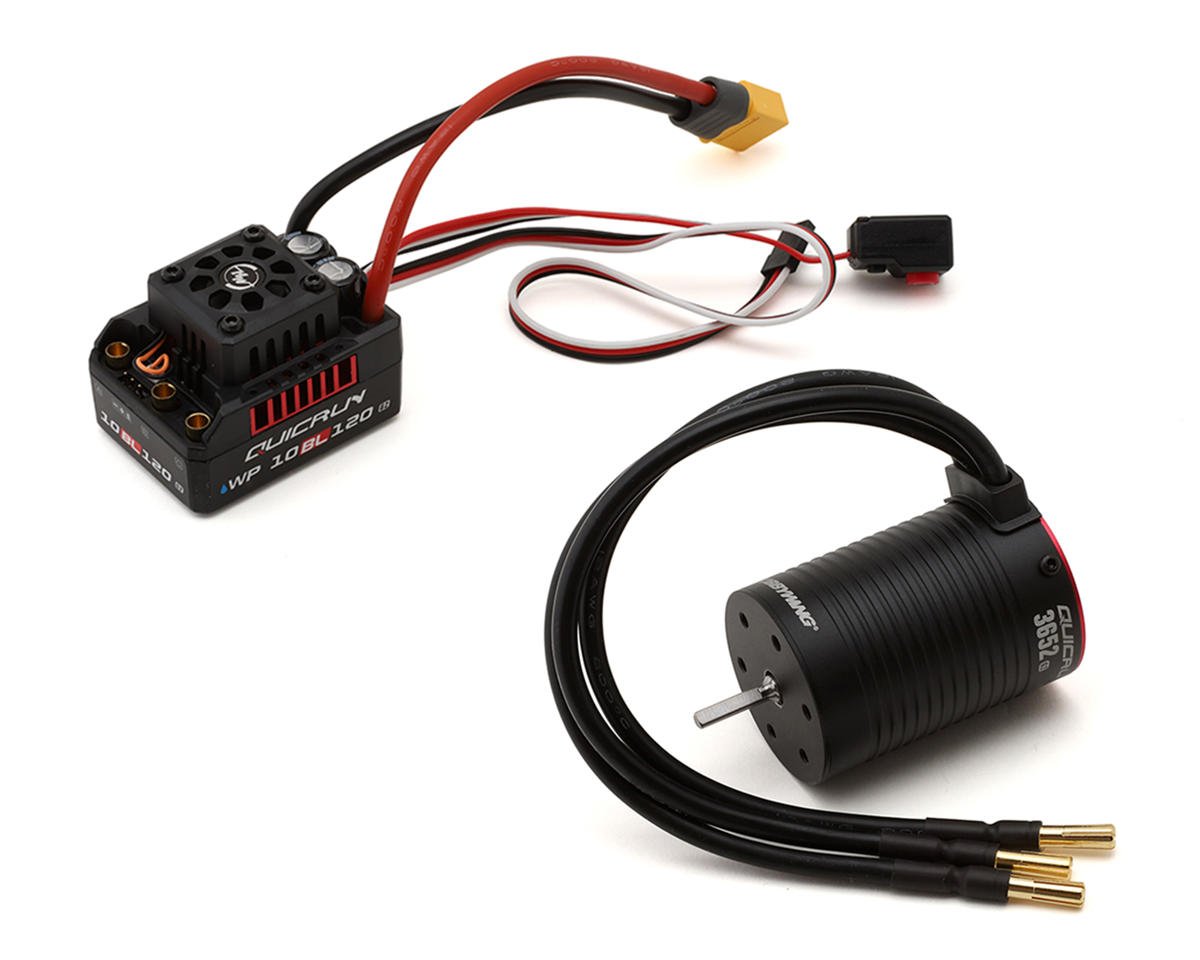

Hobbywing Quicrun 10BL 120A ESC & Motor Combo
The Quicrun 10BL120 G2 Sensorless Brushless ESC and Motor Combo have been designed to deliver extreme power and reliability with a more efficient dust-proof motor and IP-67 waterproof rated ESC. The 10BL’s built in capacitor improves on the brownout protection, efficiency, and thermal protection. This combo will be a great option for a wide range of RC models.
Features:
- G2 QuicRun 10BL120
- Intelligent freewheeling technology
- Extreme performance
- Powerful built-in BEC
- Efficient cooling system
- Capacitor Thermal Protection
- Built-in capacitor
- IP-67 waterproof Rating
- High efficiency for more power with lower temperatures!
- 4-pole rotor design for more torque with strong explosive force.
- Compared with the previous generation of motors, the output power and efficiency are increased by more than 10%, and the motor temperature is effectively reduced under the same load.
- 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.
- ESC:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: IP-67
- Current:
- Continuous: 120A
- Peak: 760A
- Input Voltage: 2-4S LiPo
- BEC Output: 6V/7.4V @ 5A
- Output Connectors: 4.0mm Bullets
- Dimensions: 2.07×1.56×1.50″ (52.8×39.8×38.2mm)
- Weight: 4.19oz (119g)
- Motor:
- Input Voltage: 2S-3S LiPo
- KV: 4000kV
- Pole: 4
- Motor Diameter: 1.42″ (36mm)
- Motor Length: 2.05″ (52mm)
- Shaft Diameter: 0.13.” (3.175mm)
- Shaft Length: 0.59″ (15mm)
- Front Bearing size: D13*D5*T5
- Rear Bearing size: D13*D5*T4
- Weight: 224g
- (1) QuicRun 10BL120 G2 1/10 Sensorless Brushless ESC

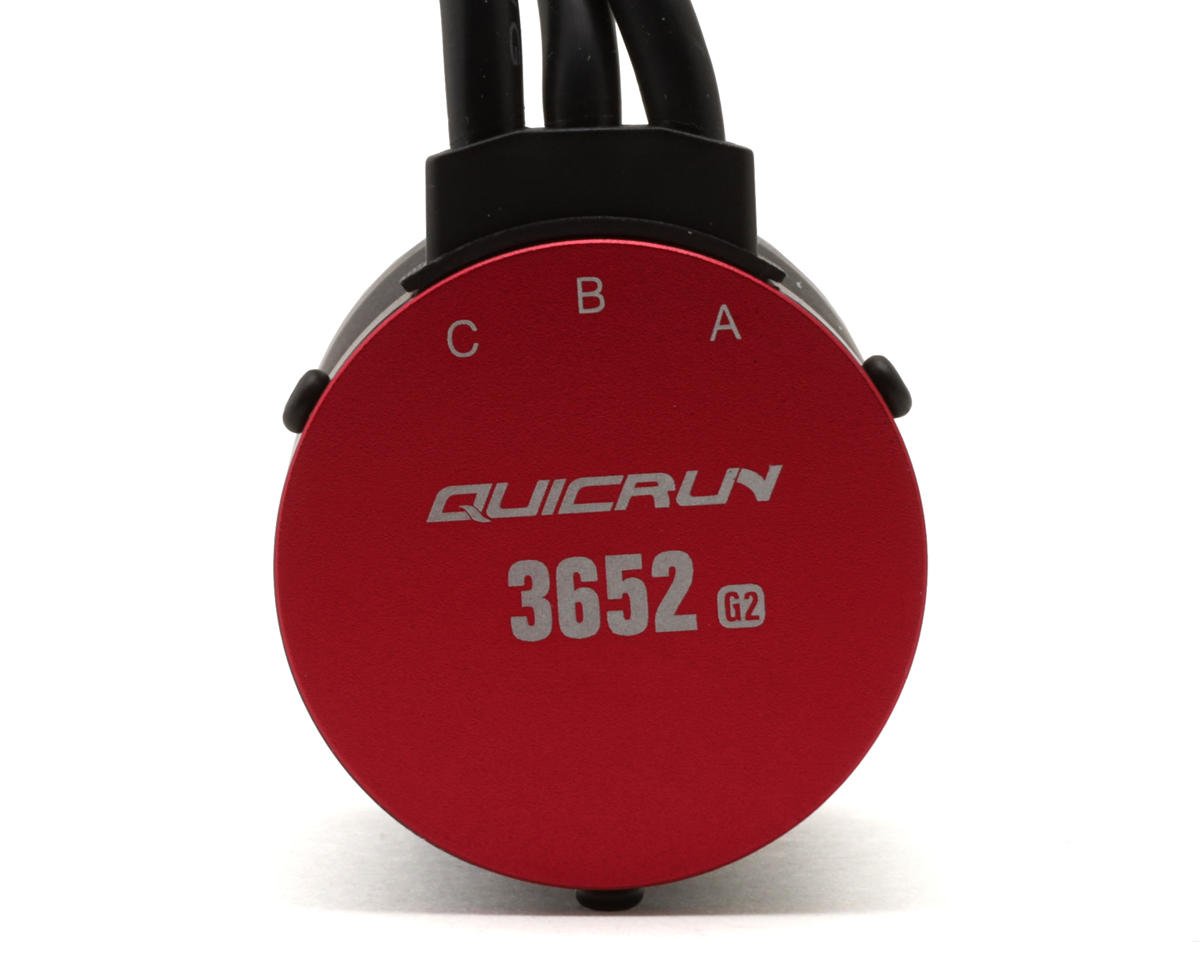

- (1) QuicRun 3652SL G2 Sensorless Brushless Motor (4000kV)
G2 QuicRun 3660SL
Specifications:
Includes:
This product was added to our catalog on July 26, 2023
