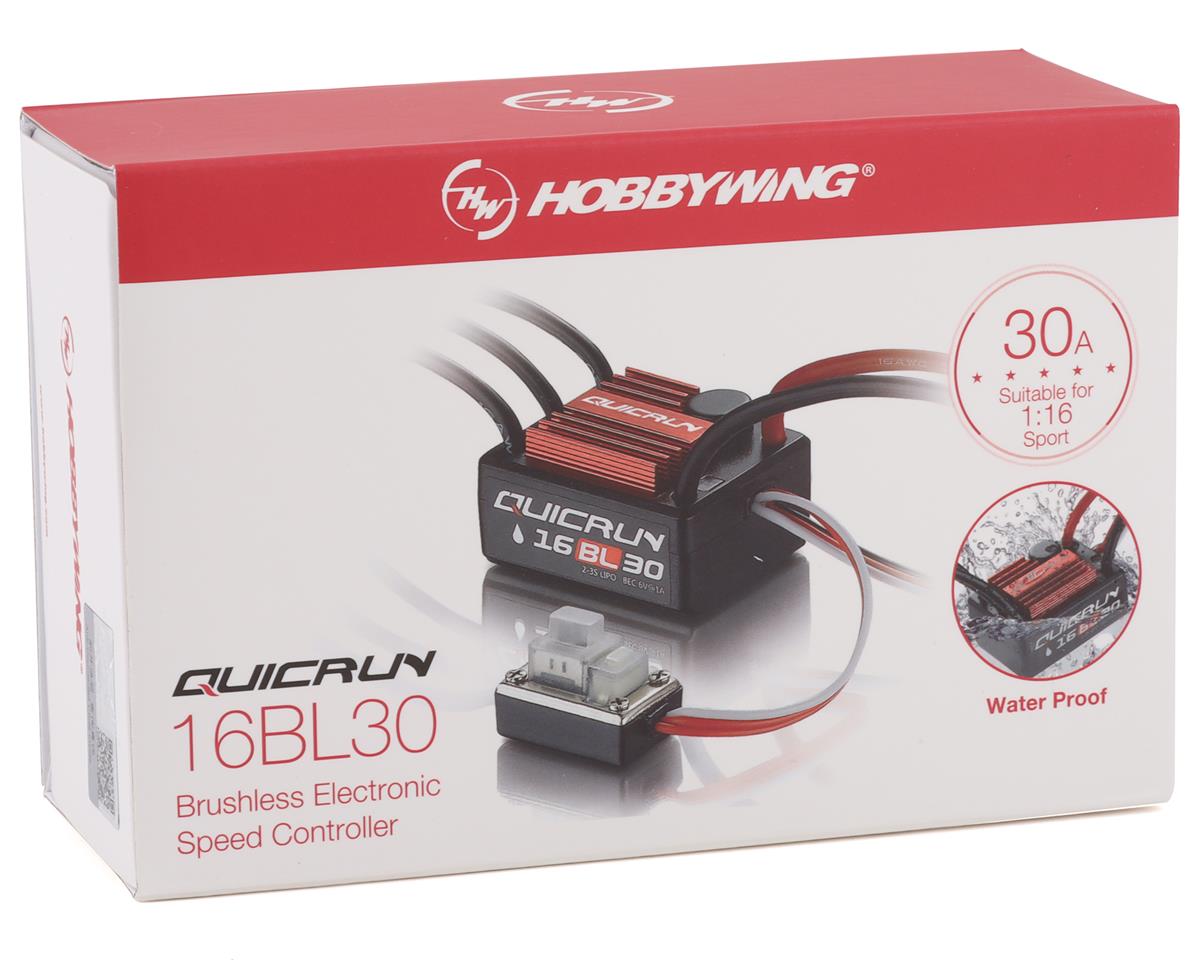

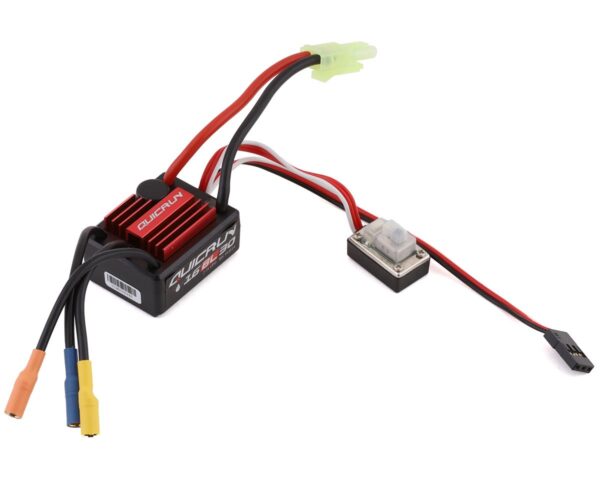

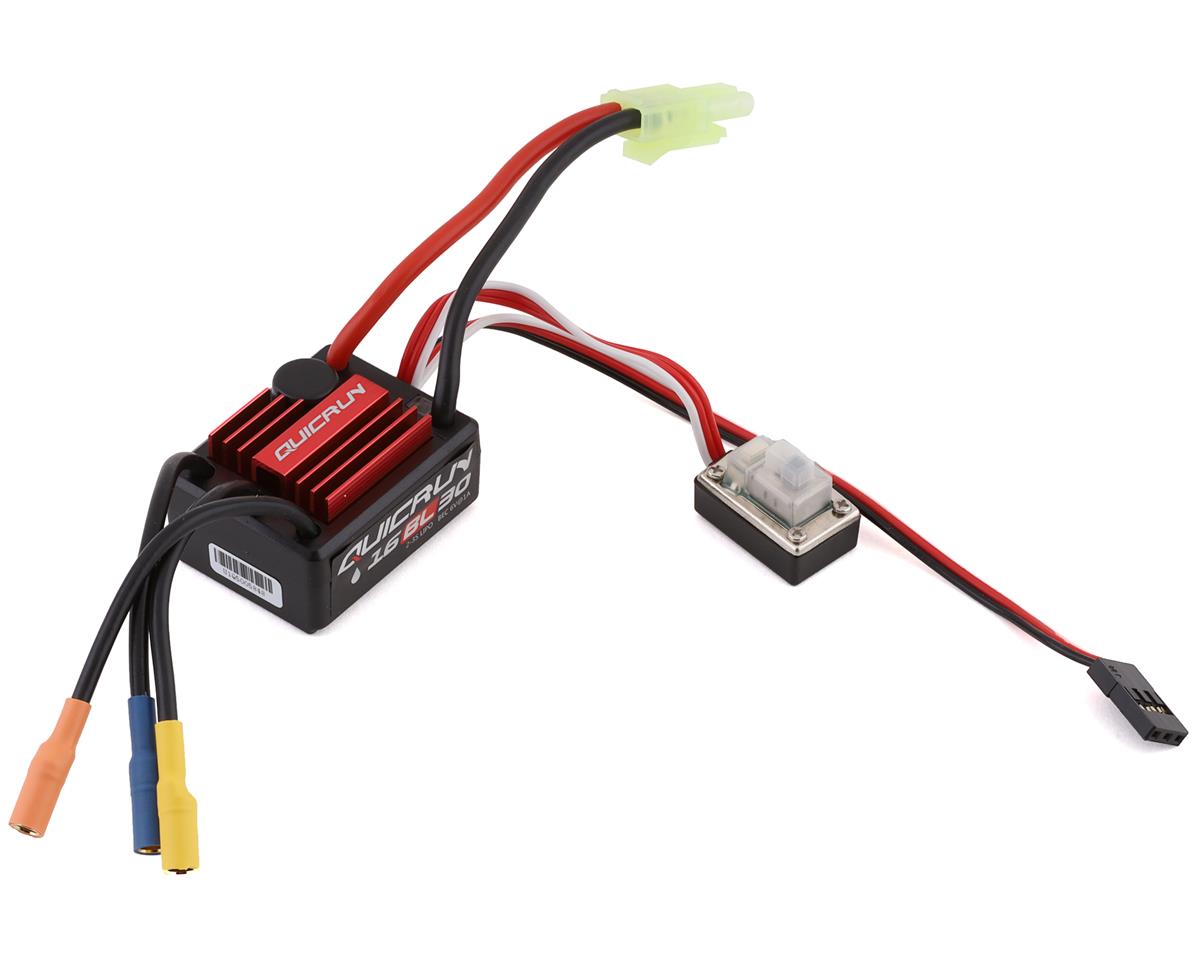

Hobbywing Quicrun WP-16BL30 Waterproof 1/18th Scale Brushless ESC.
Features:
- Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
- 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit different kinds of models, tires and tracks.
- Multiple protections: Low voltage cut-off protection / Over-heating protection / Throttle signal loss protection / Motor lock-up protection.
- One-button (the “SET” button on the ESC) sets the ESC. All parameters easily reset to factory default settings.
- Compatible with optional device —- the portable Digital LED Program Card, especially convenient for outdoor use.
Specifications:
- Cont./Peak Current/Resistance: 30A/180A/0.002?
- Motor Type Supported: Sensorless Brushless Motor
- Car Applicable: 1:18 & 1:16 On-road/Off-road/Buggy/Monster
- Motor Limit: 2S LiPo or 6 cell NiMH:
- On-road: 2435-size or smaller motor with the KV<8000
- Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<5000
- Motor Limit: 3S LiPo or 9 cell NiMH:
- On-road: 2435-size or smaller motor with the KV<5500
- Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<3500
- Battery: 4-9 Cell NiMH, 2-3S LiPo
- BEC Output: 6V/1A (Linear Mode)
- Size/ Weight: 36(L)*28(W)*16(H) / 38g
- External Program Port: Not Available
- Fan: No cooling fan
This product was added to our catalog on January 20, 2021
