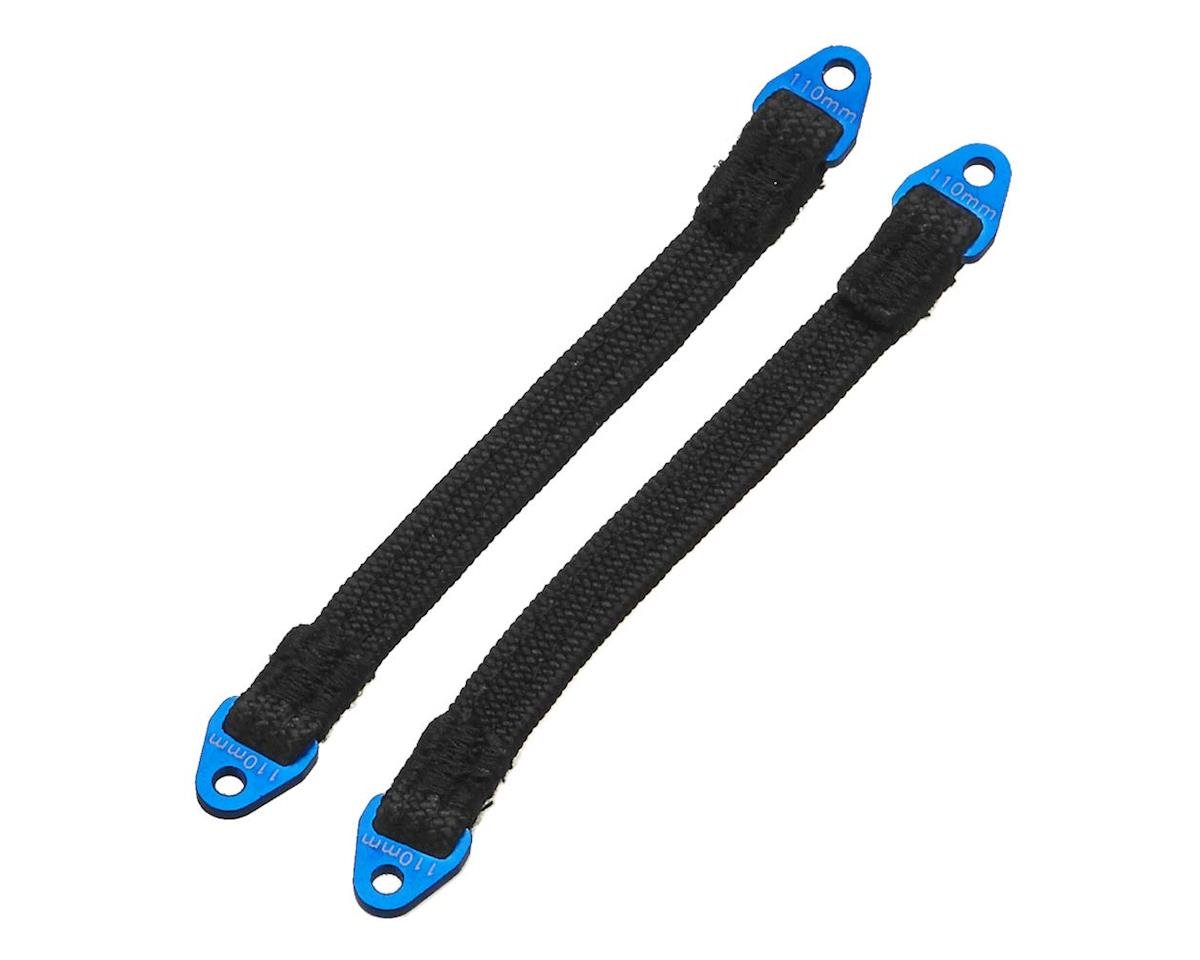

Hot Racing 110mm Suspension Travel Limit Straps are functional suspension limit straps that limit suspension travel on all types of off-road R/C vehicles, including rock crawlers and racers. Limit straps are used to take stress off shocks and to control suspension extension. For example, when crawling up or descending steep grades, straps tied to the center of an axle are useful to limit the suspension from unloading and the vehicle from rolling, all while keeping suspension articulation intact.
Features:
- Woven 2-ply Nylon fabric strap material
- CNC machined aluminum clevis buckles
Specifications:
Length eye-to-eye: 110mm
Total length end-to-end: 117mm
Nominal strap size: 8×2.3mm
Eyelet hole size: 3.3mm for a 3mm screw
NOTE:
- These straps are made from 200 lb. test nylon and offers minimal stretch to provide a consistent strap length and to protect against overextending shocks
- Tested on extreme off-road terrain
- Strap lengths are measured from the center of the mounting holes and are accurate to +/3mm
- Recommendation: when ordering, choose a limit strap that is at least 5mm shorter than the shock to prevent full extension and possible breakage of shock
This product was added to our catalog on March 6, 2018
