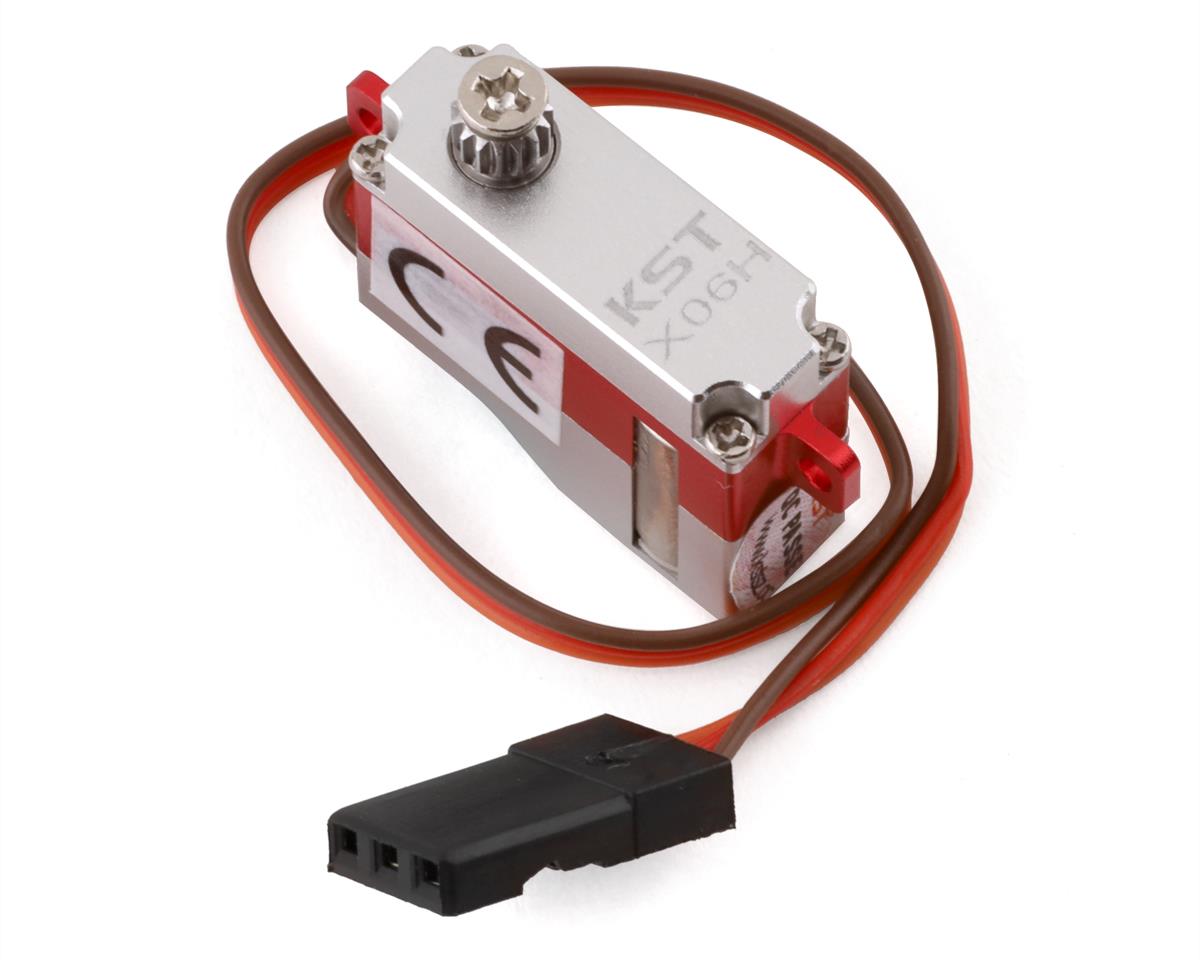

The X06 Micro Digital Metal Gear Servo from KST is an excellent choice for pilots looking for an impressively thin servo for their DLG, or other models that require something small in size, but strong in specs. Thanks to its powerful coreless motor, and hardened steel gears, this servo is built to handle even the most commanding of tasks – that a small aircraft can provide. It’s wide voltage range allows compatibility for almost any set up, with a maximum voltage input range of 8.4V.
No matter the use case, the X06 delivers not only a great balance of torque and speed, but excellent quality and performance that KST users are accustomed to.
Specifications:
- Operating Voltage: 3.8-8.4V
- Size: 20x7x16.6mm
- Torque:
- 3.8V: 11.1oz/in (0.8kg/cm)
- 6.0V: 20.8oz/in (1.5kg/cm)
- 8.4V: 24.99 oz/in (1.8kg/cm)
- Speed:
- 3.8V: 0.12sec/60 degrees
- 6.0V: 0.08sec/60 degrees
- 8.4V: 0.07sec/60 degrees
- Weight: 6g
- Motor: Coreless
