Receiver Overview:

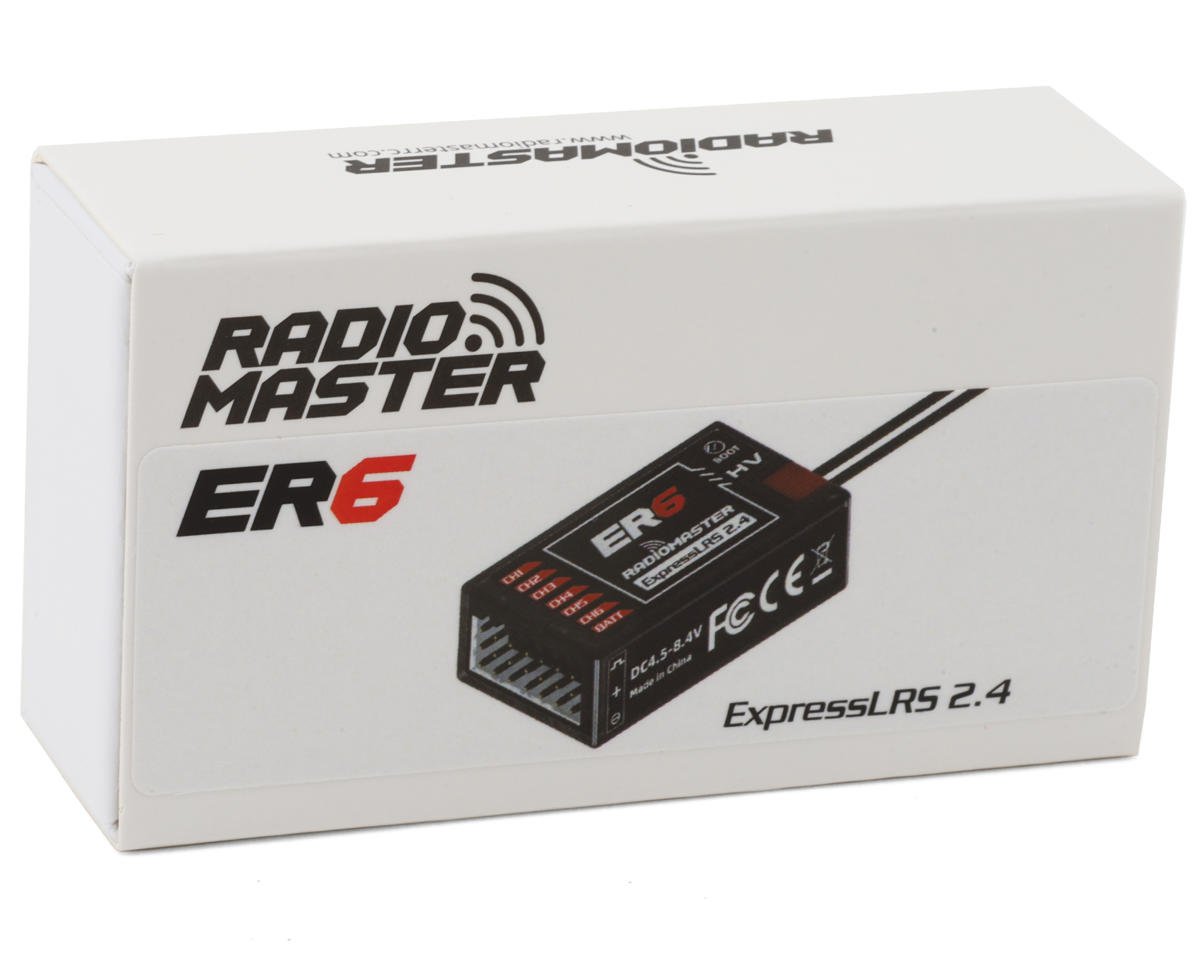

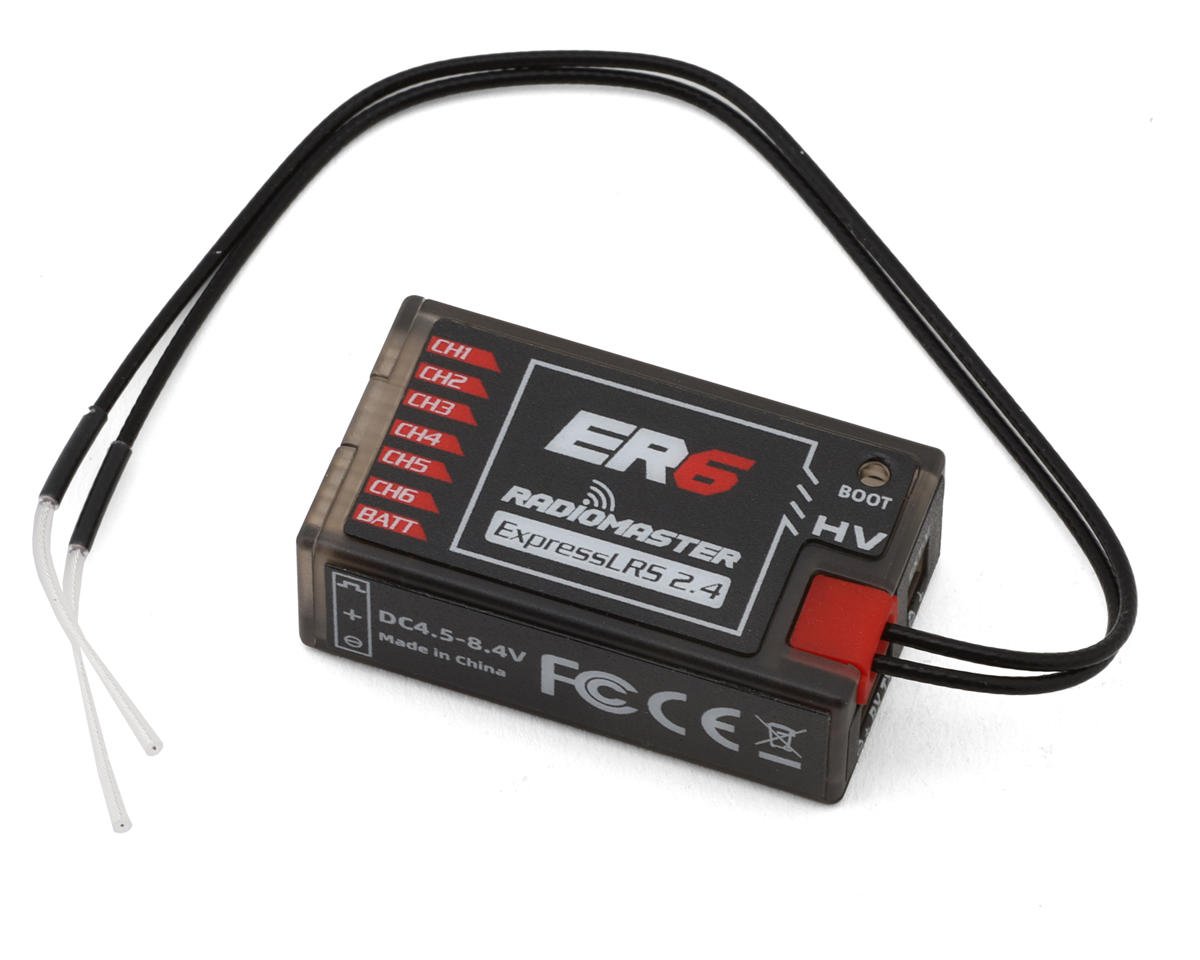

This is the ER6 ExpressLRS 2.4GHz 6 Channel Receiver from RadioMaster. Designed for fixed-wing enthusiasts, this receiver combines the revolutionary ExpressLRS system with advanced features like dual-antenna telemetry, automatic voltage detection, and support for up to six PWM channels.
Features:
- Based on the revolutionary ExpressLRS system
- Supports six PWM channels with flexible configuration
- Automatic voltage telemetry for external or built-in batteries
- Dual-antenna design with up to 100mw telemetry power
- Compact, high-strength one-piece molded shell
Specifications:
- Power Supply: DC 4.5-8.4V
- Antenna Type: 20cm high sensitivity dual antenna
- Output Channel: 6CH PWM
- Telemetry Power: Maximum 100mw (LUA Adjustable)
- Dimensions: 1.70×0.91×0.60in (43x25x15mm)
- Weight: 0.51oz (14.5g)
Includes:

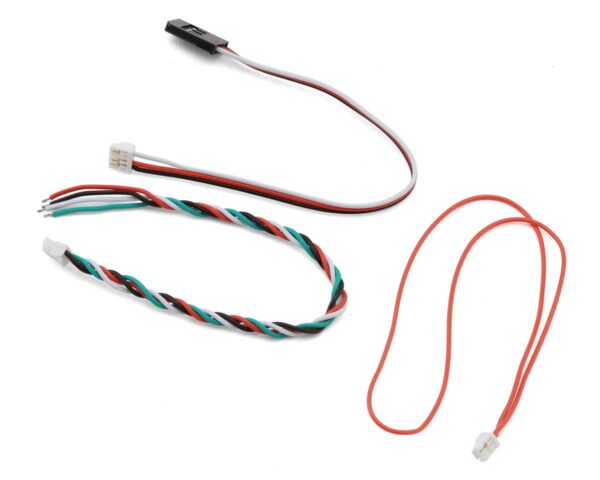

- (1) ER6 2.4GHz ELRS PWM Receiver
- (1) Voltage telemetry wire (Type-B)
- (1) CRSF wire
- (1) ELRS-RX-SBUS wire
- (1) User card
