Servo Overview:

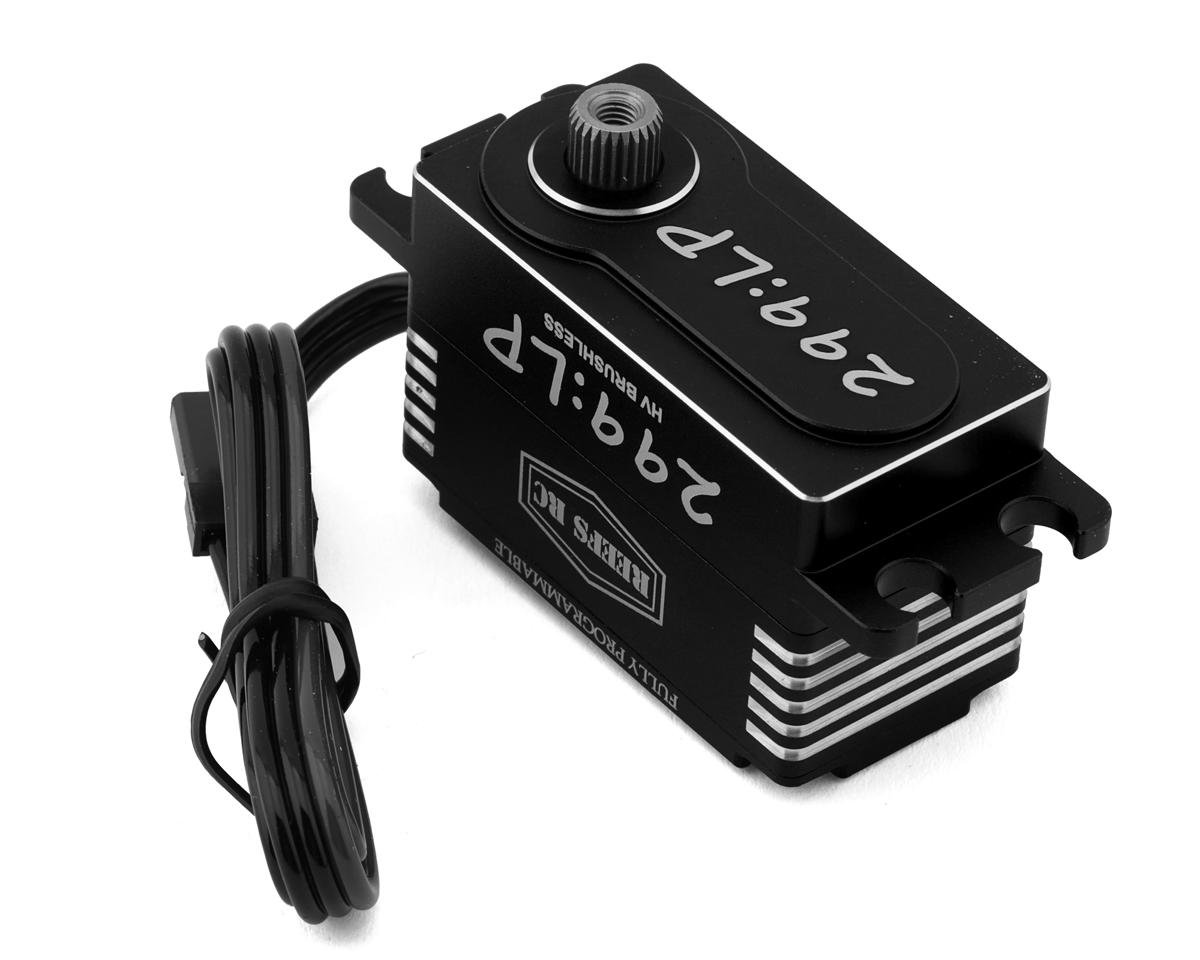

Reefs 299LP High Torque/Speed Brushless Low Profile High Voltage Servo. Available in multiple anodized colors with a beautiful aluminum case, this powerful racing servo features a water-resistant low-profile design with a magnetic angle sensor and is capable of putting out 313oz-in (22.5kg-cm) of torque and 0.05sec/60° of speed at (8.4V)! Providing racers and drifters the speed and power needed in a low-profile, lightweight sleek design!
Features:
- Hi voltage capable
- High torque high speed brushless motor
- Water resistant low profile design
- Magnetic angle sensor
- Fully programmable with REEFS software (Reefs LINK required for programming)
- All aluminum case with side fins to maximize heat dissipation
- Anodized in multiple colors
Specifications:
- Speed:
- @6.0V: 0.07sec/60°
- @7.4V: 0.06sec/60°
- @8.4V: 0.05sec/60°
- Torque:
- @6.0V: 278oz-in (20kg-cm)
- @7.4V: 299oz-in (21.5kg-cm)
- @8.4V: 313oz-in (22.5kg-cm)
- Motor: Brushless
- Operating Voltage: 4.8V-8.4V
- Dimensions(LxWxH): 1.6″x0.79″x1.0″ (40.8×20.2×26.5mm)
- Weight: 2.0oz (57.2g)
- Operating Spline: 25T (ProTek/Futaba)
Includes:

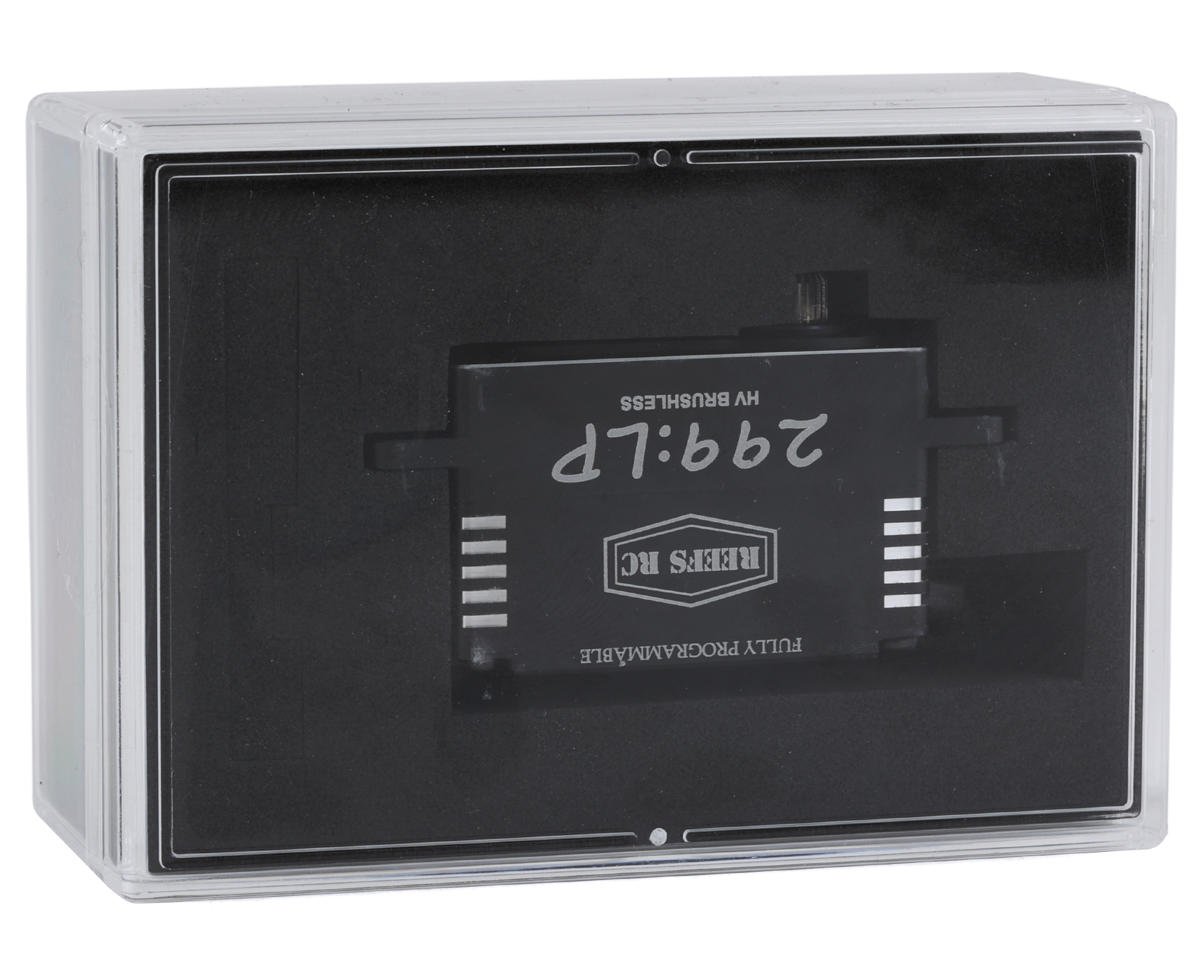

- (1) 299LP Low-Profile Racing Servo

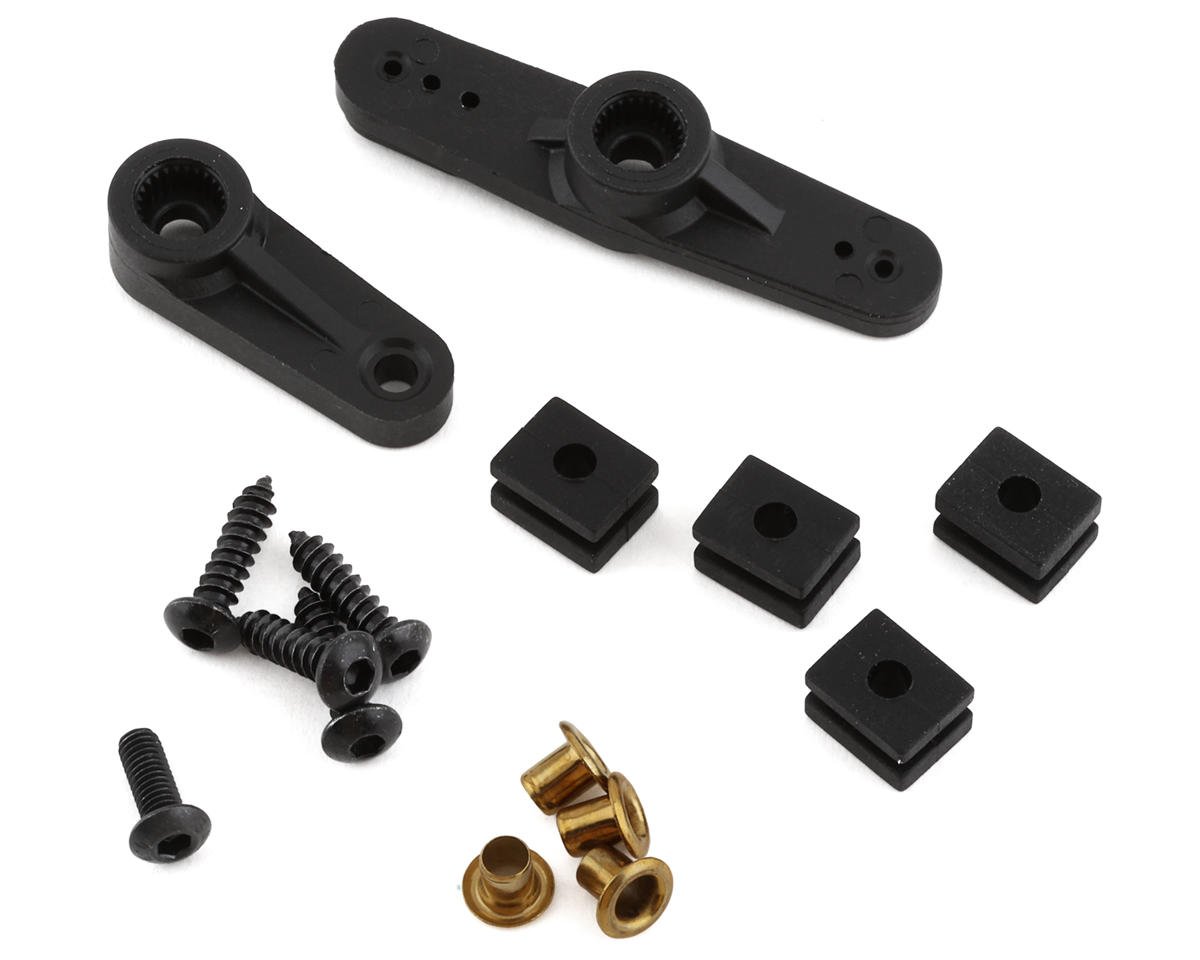

- Servo Horns and Mounting Hardware
