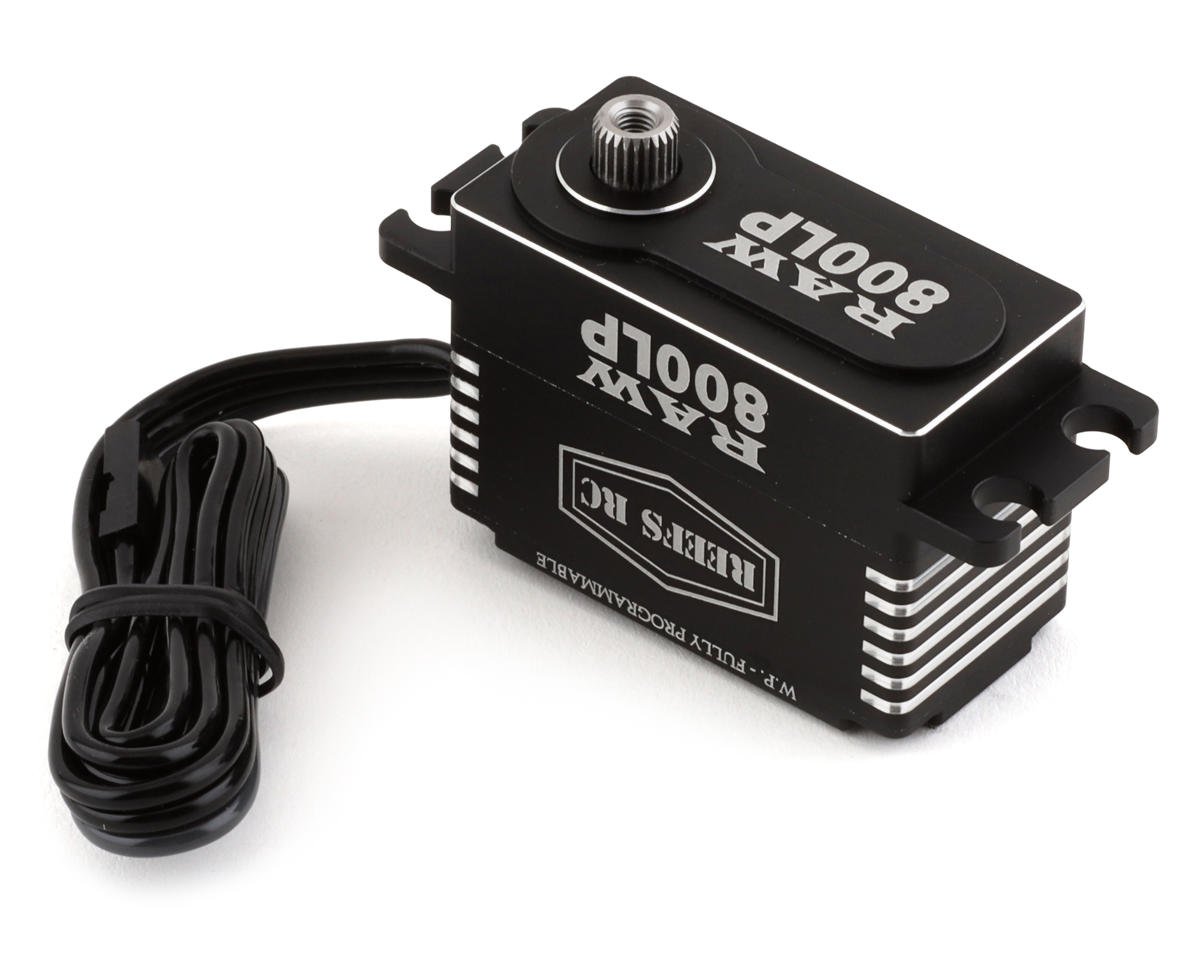

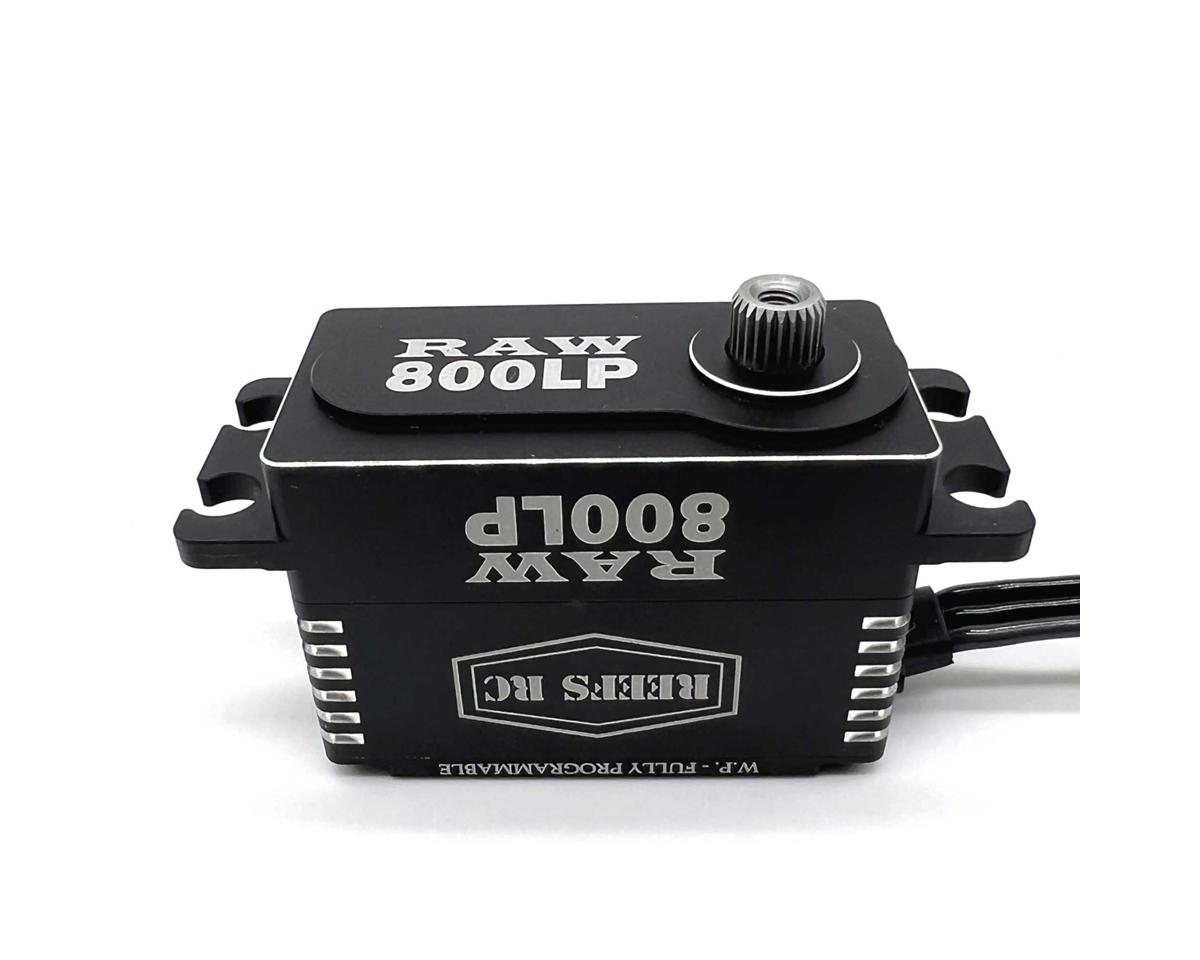

Reefs RC RAW800LP Digital Waterproof Brushless Servo (Black) (High Voltage) [SEHREEFS146]

This is the Reefs RC Raw 800LP High Torque Waterproof Digital Servo. Intended for high torque applications where a reliable waterproof servo is needed the Raw 800LP excels. Using a 7-point seal system gives this servo exceptional waterproofing, while a magnetic angle sensor provides precise servo movements you can count on after countless cycles. The gearset consists of strong steel gears captured with an all aluminum servo casing providing excellent heat dissipation and improving consistency. Overall the Raw 800LP delivers where other servos cannot and is an excellent option for most high torque builds.

Features

• Waterproof Design (7 Point Seals)
• Magnetic Angle Sensor
• CNC Aluminum Case
• Programmable with the Reefs Link (SEHREEFS64 – Sold Separately)
• Steel internal gears

Specifications:

• Internal: Steel Gears /CNC Aluminum Casing
• Bearing Type: 2BB
• Weight: 2.30oz
• Dimension: 1.6 x .79 x 1.16 (40.8×20.2×29.5mm) (LWH)
• Torque:
• 6.0V: 635oz
• 7.4V: 715oz
• 8.4V: 800oz
• Speed:
• 6.0V: .12sec
• 7.4V: .10sec
• 8.4V: .09sec
• Spline: 25T
• Dead Band Width: 2¦Ìs
• BEC: Not Required, Recommended

This product was added to our catalog on May 30, 2023
