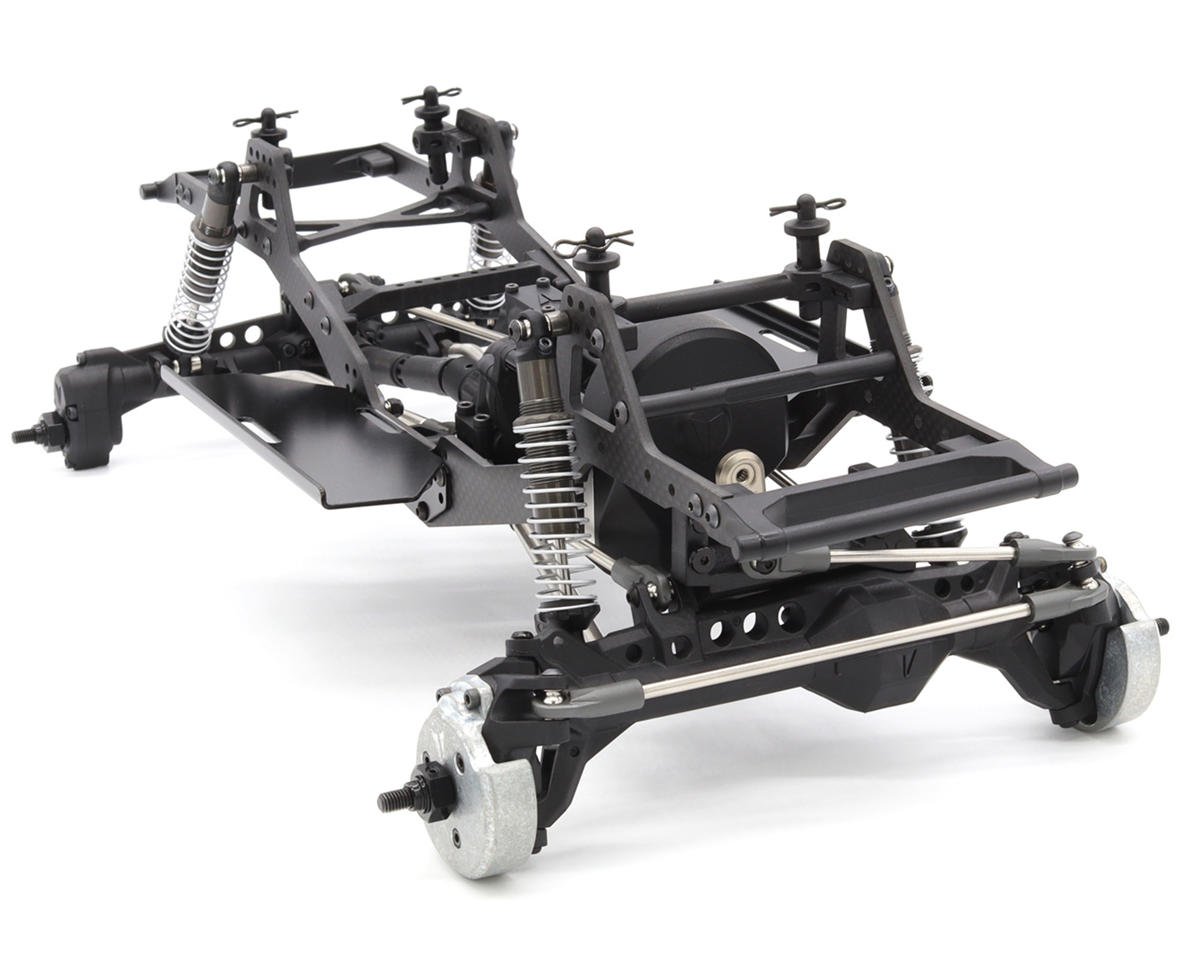

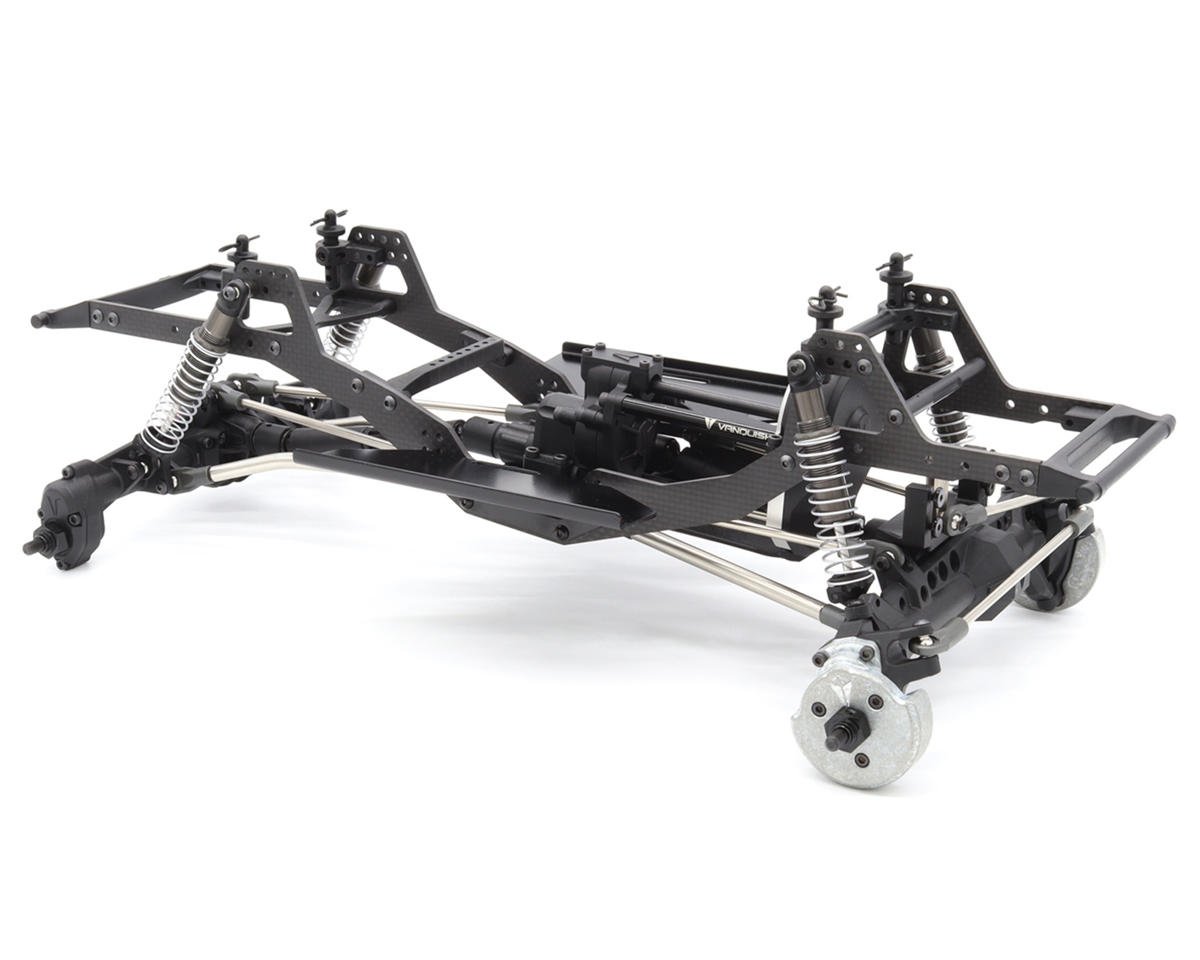

VRD Crawler Comp Ready LCG Chassis Kit
Introducing the Vanquish Products VRD Carbon Kit, a pioneering innovation designed to cater to both seasoned RC rock crawling enthusiasts and those new to the sport. This competition-level platform boasts a 3mm thick matte finish carbon fiber frame, coupled with a 6-degree flat skid plate, offering advanced users precision and control in their crawls. For beginners, the user-friendly design with molded components provides adaptability to varied terrains. The lightweight spec VFD transmission, with its innovative features, guarantees durability while accommodating the needs of all skill levels.
About the VRD Chassis Kit:

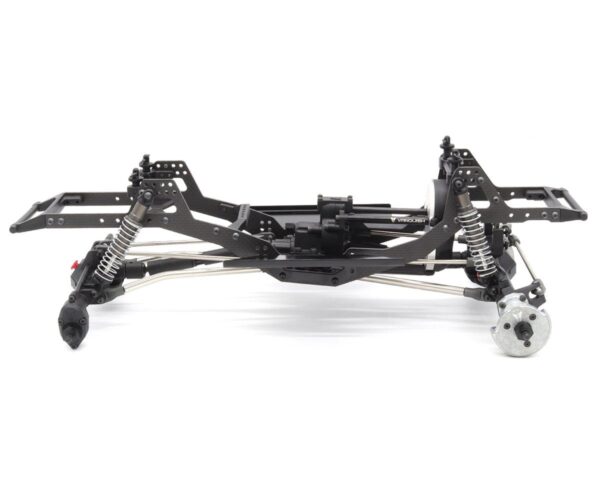

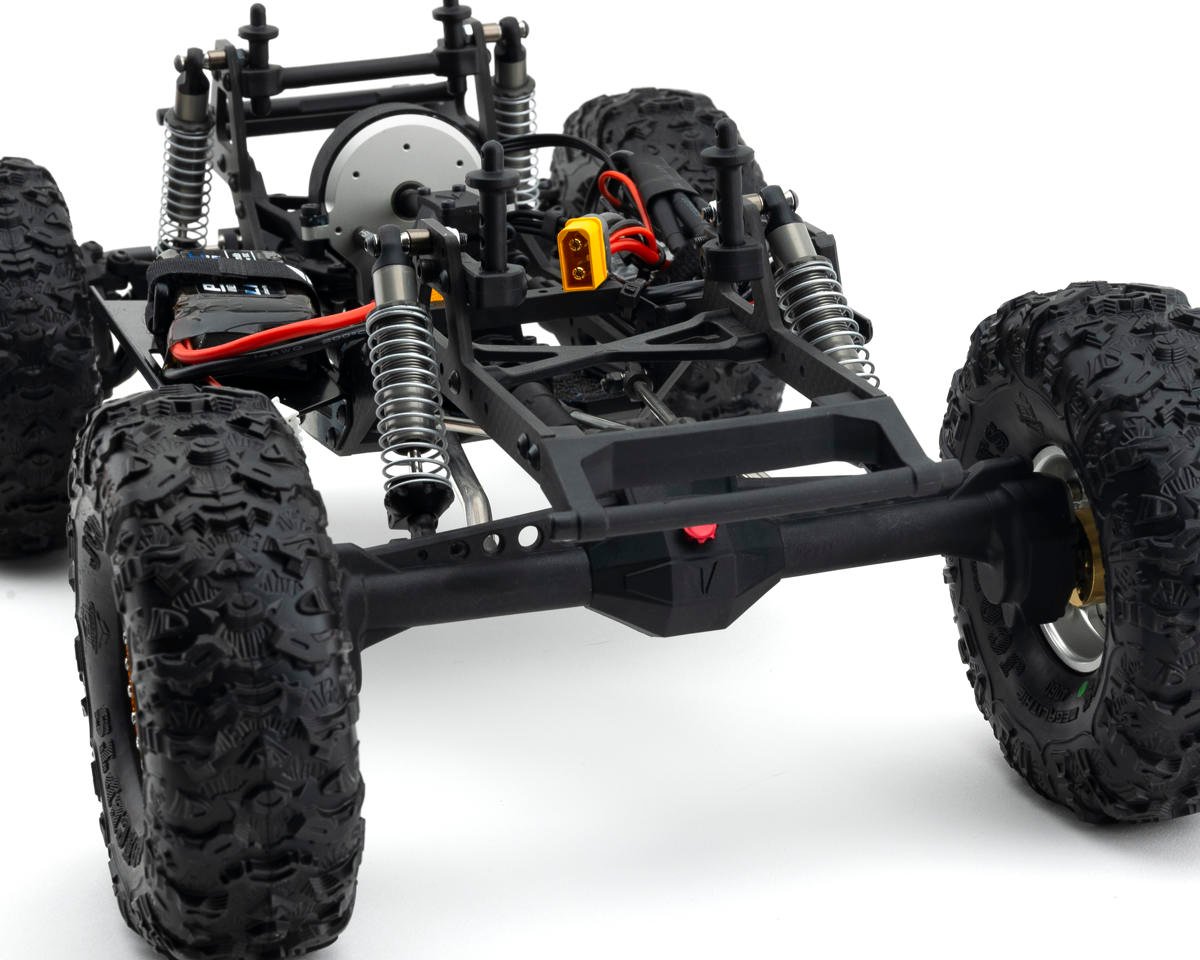

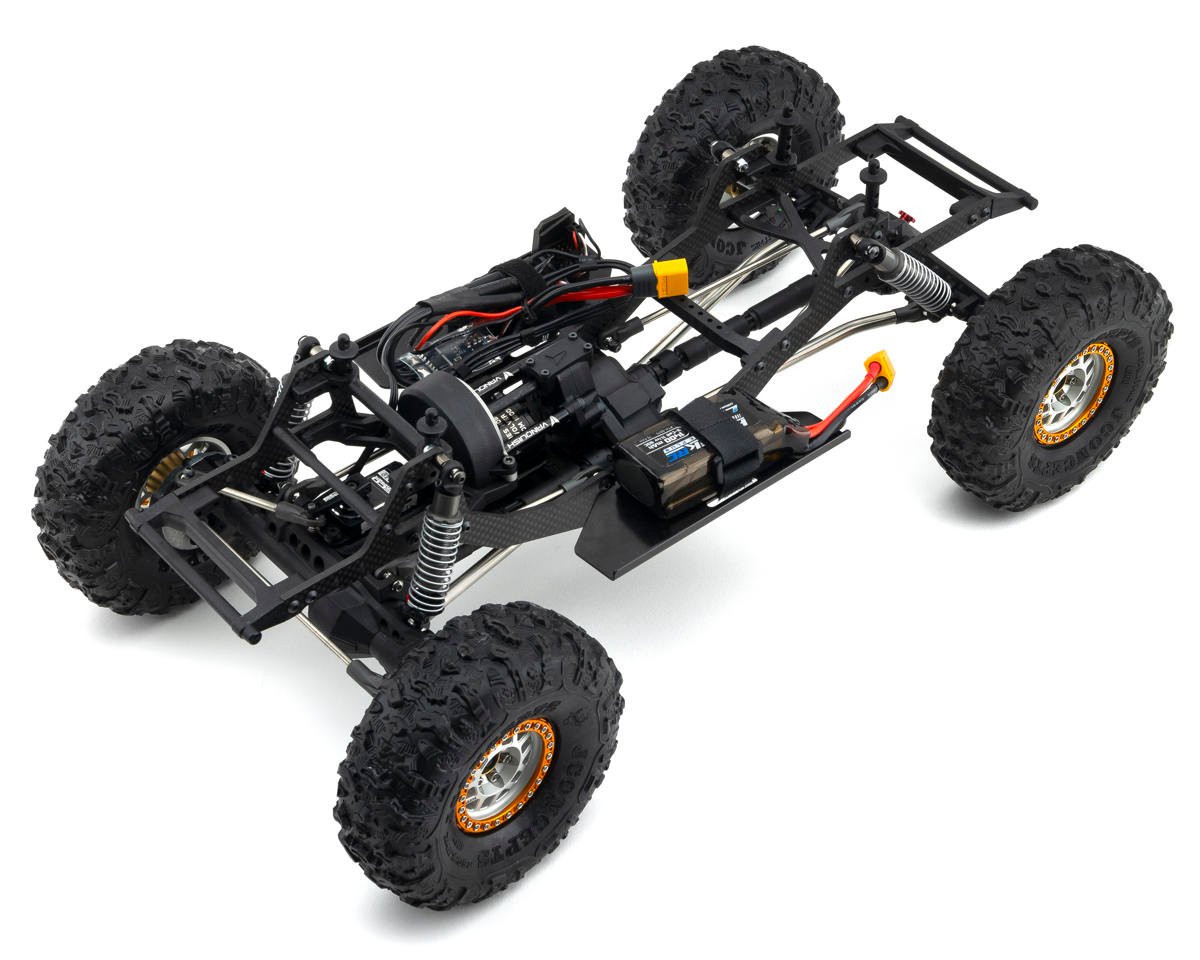

Performance Chassis

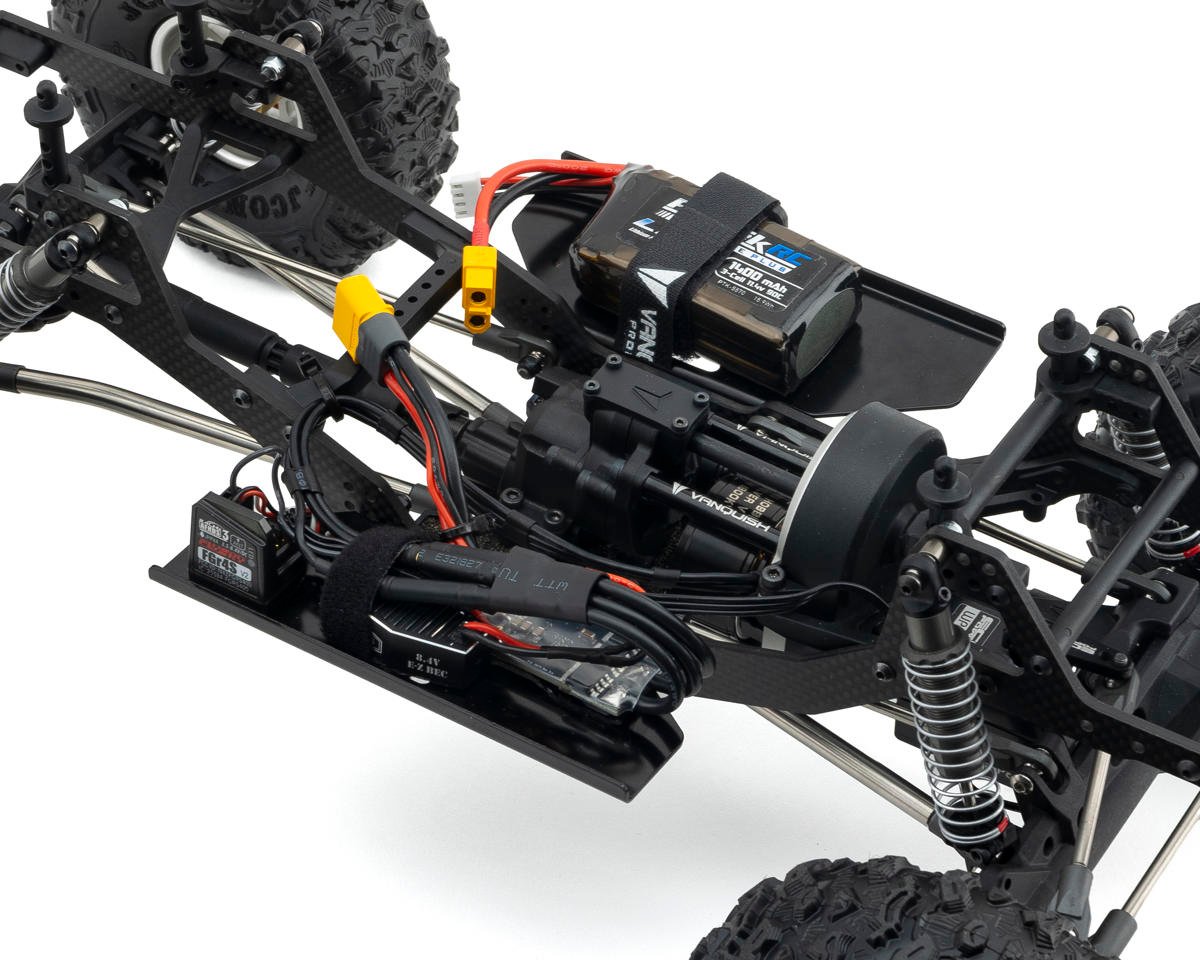

The VRD Carbon Kit’s chassis is a testament to versatility and adaptability. With carbon fiber rails, it features molded components that provide tunable options, making it suitable for both beginners and seasoned rock crawling enthusiasts. Multiple shock and body mounting positions, along with stamped aluminum rock sliders, ensure straightforward body mounting and fitment while protecting your electronics. These come together and allow for a higher level of versatility over different crawling environments.
Advanced Suspension Design

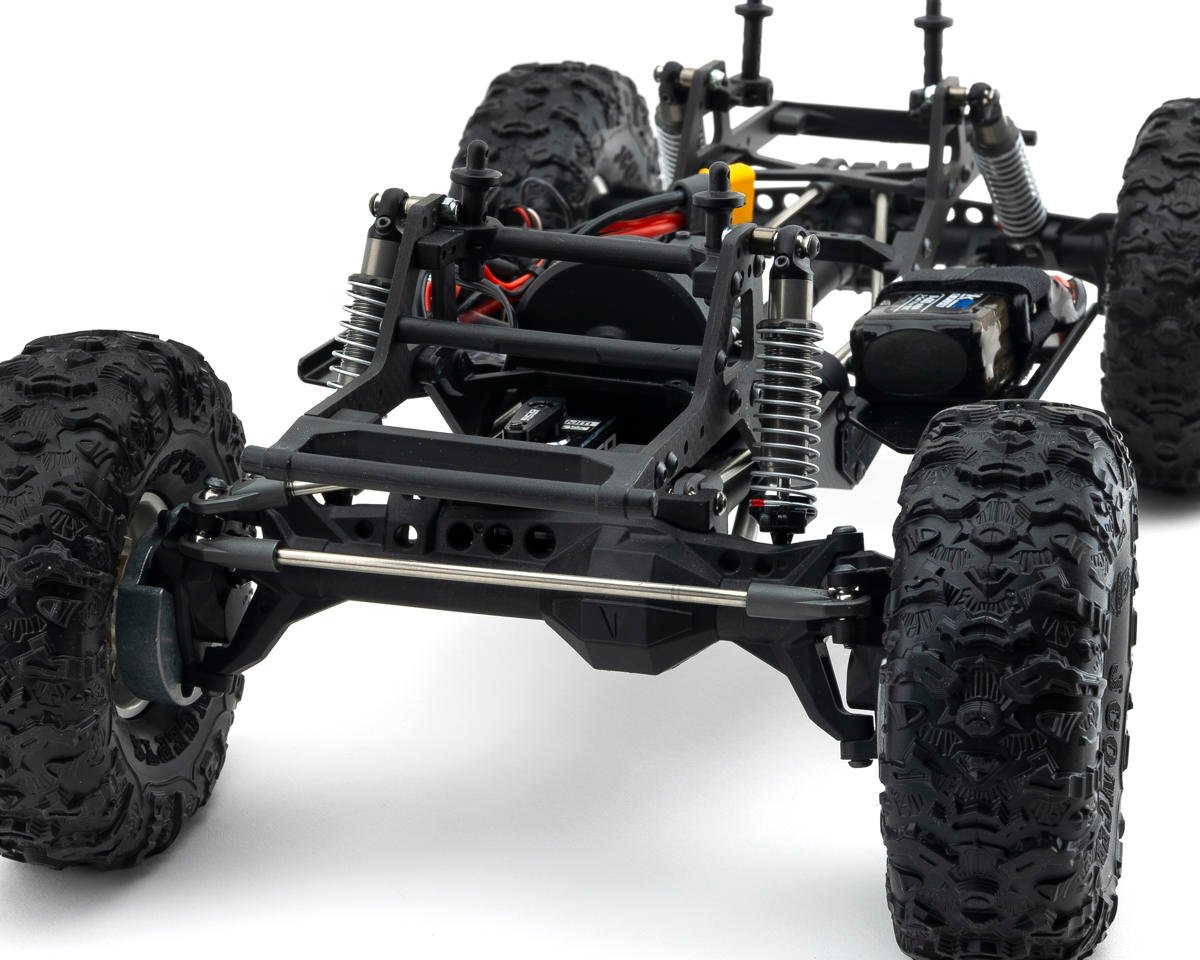

Equipped with Incision S8E shocks featuring hard-anodized shock bodies, the VRD ensures a smooth and controlled ride, ideal for conquering challenging terrains. Heavy-duty stainless steel lower suspension links and lightweight upper links, along with the included 25T spline 20mm Servo Horn, offer robust connectivity between the chassis and axles, delivering stability and precision in your rock crawling adventures. The suspension system’s tunable shock length and multiple shock mounting options provide the flexibility to fine-tune ride height and adapt to various terrains, making adjustments easy for both novice and advanced users.

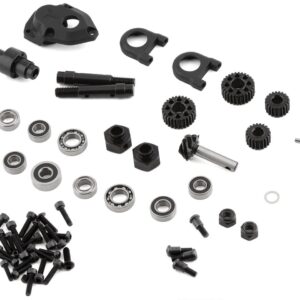

Performance 4WD Transmission

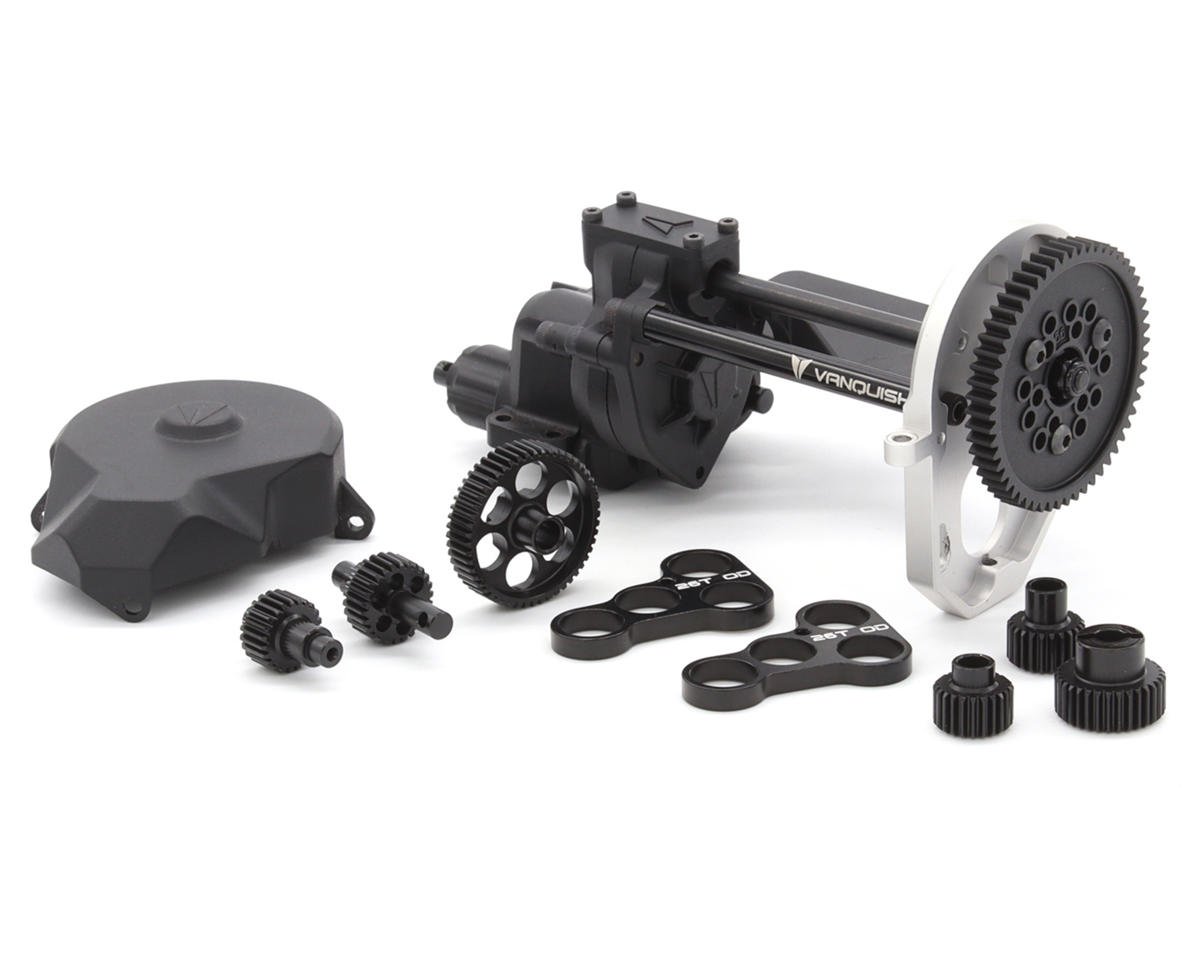

In the center of the VRD Carbon Kit is the updated lightweight spec VFD transmission equipped with a lightweight machined aluminum motor plate and aluminum motor plate standoffs. In addition, internally the VFD is equipped with CNC-machined aluminum bearing plates and machined lightweight chromoly gears to boost stability, reliability and crawling capabilities. Each internal gear has been re-designed to be as lightweight as possible dropping the weight of the overall transmission while maintaining a high level of durability!

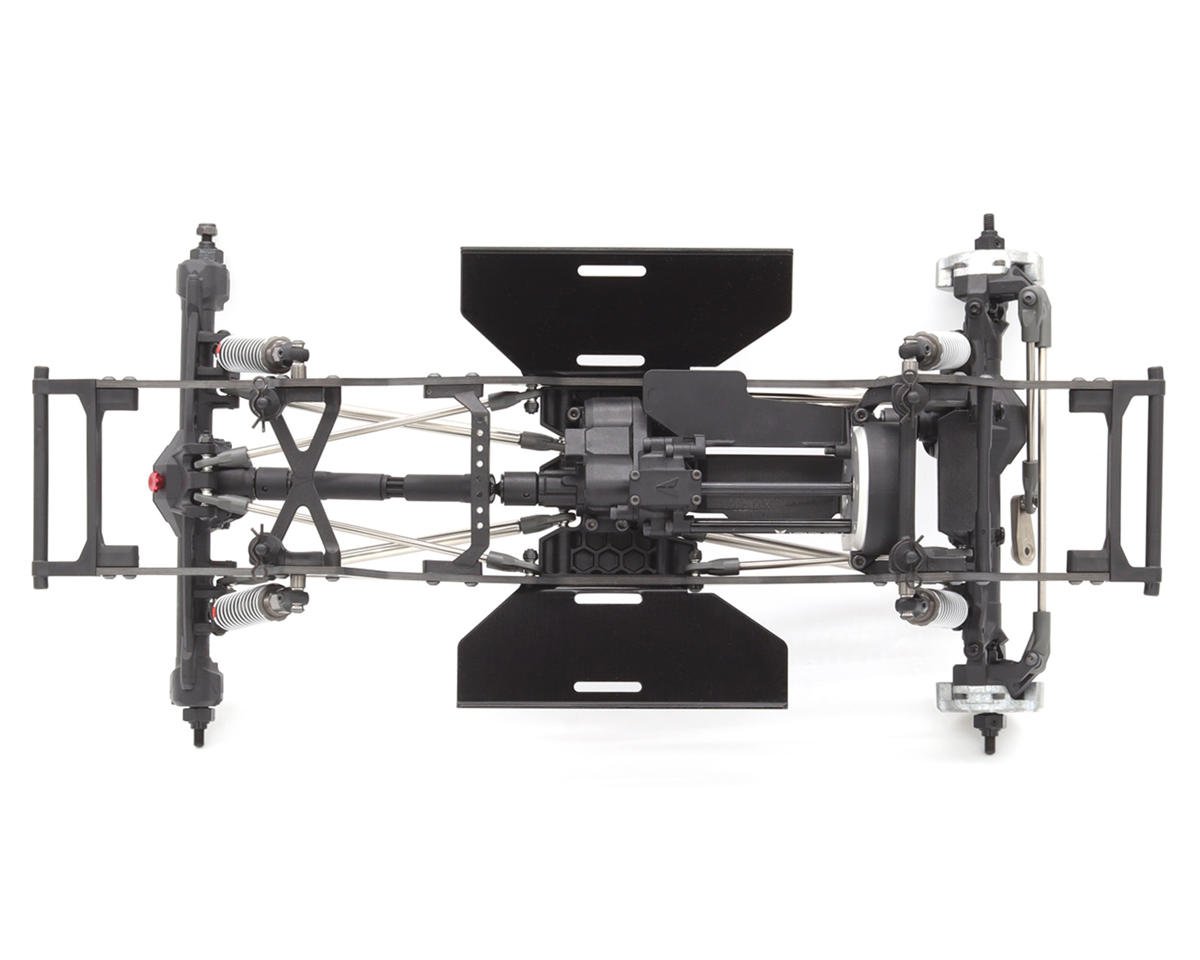

Ultra Low CG

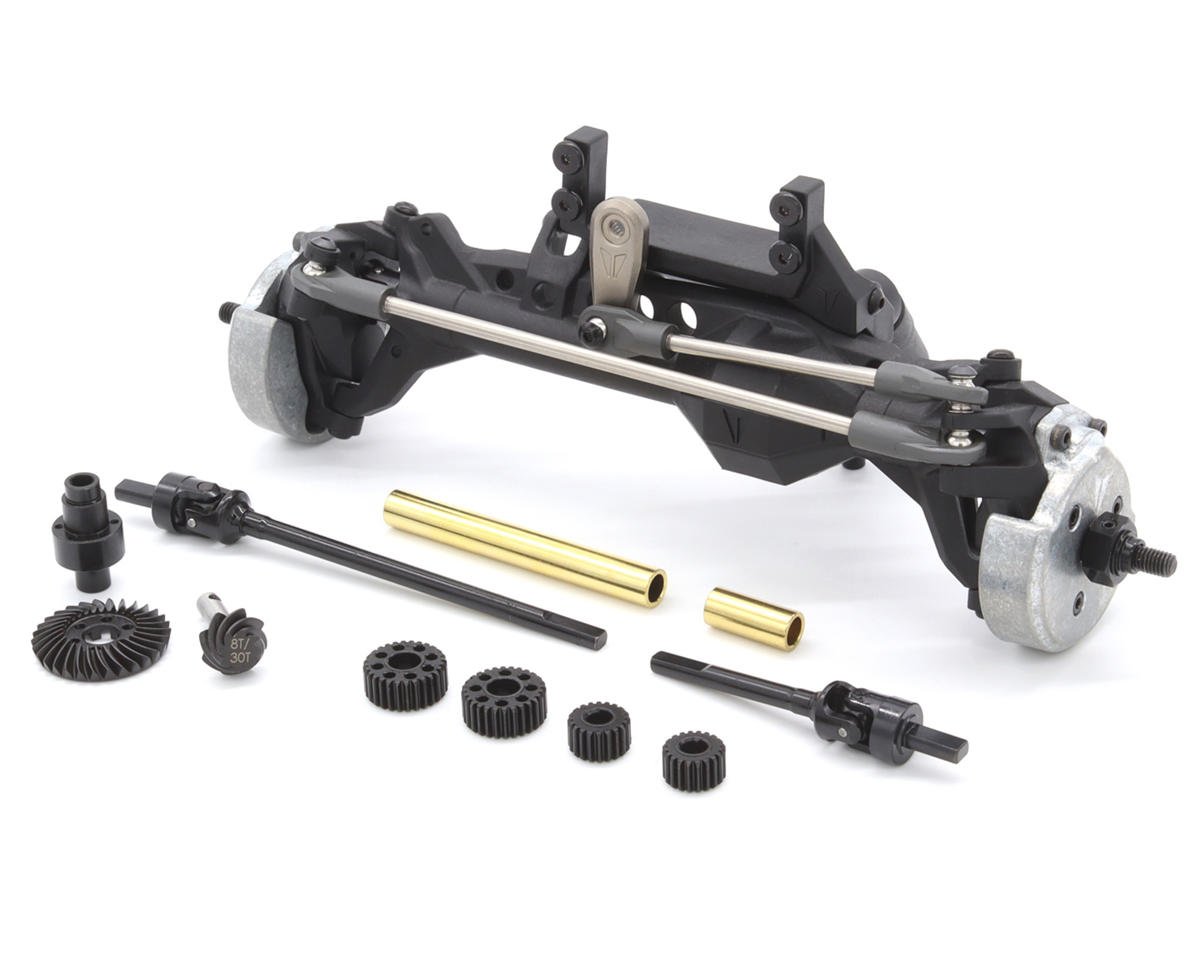

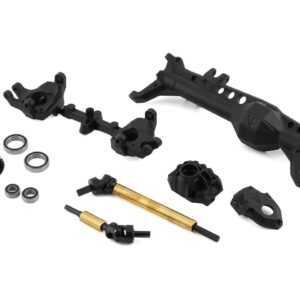

The molded chassis components and skid plate help place the lightweight spec VFD transmission as low as possible into the VRD chassis, while the updated F10 front portal axle design uses an (AMS) Axle-Mounted-Servo and a 4-link suspension system to maximize steering output and enhance crawling performance by lowering the LCG (Lower center of Gravity). In addition, both front and rear axles come with weighted brass tube inserts and the front steering knuckles are constructed from alloy aluminum to keep the center of gravity as low as possible, which translates to a higher performance output and a significant enhancement in durability.
Features:
- Lightweight Spec VFD Transmission
- Carbon Fiber Frame Rails with 6-degree flat skid plate
- F10 Portal Axles
- Overdrive Axle Gears (Front)
- Lightweight Machined Chromoly Transmission Gears
- Chromoly Universal Axle Shafts
- Hard Anodized Shock Bodies
- Stainless Steel Links with HD Bent Rear Links
- Aluminum Rock Sliders
- Adjustable Multi-point Body Mounting System
Completion Notes:
In the hardware bag, there are two 22mm long screws mixed into the 20mm screws. These 22mm screws are used for the rear upper shock mounts.
Includes:
- VRD Carbon 1/10 Competition Rock Crawler Kit
- 25T spline 20mm Servo Horn
- Instruction Manual
Needed To Complete:
- 3+ Channels Transmitter/Receiver system
- Compatible steering servo (Included is a 25T spline 20mm Servo Horn)
- ESC (Electronic Speed Controller)
- 540 size motor
- 2-4S (7.4V – 22.2V) LiPo Battery (35x35x100mm) or smaller
- Compatible battery charger
- 4x 1.9 Wheels (Vanquish Products or SLW Hub Compatible wheels required)
- 4x 1.9×4.75” Tires (recommended)
- Comp Style Body
- Assembly tools and polycarbonate paint
Specifications:
| Scale Size | 1:10 Scale |
|---|---|
| Length | – |
| Width | 7.87″in (200mm) |
| Height | – |
| Wheelbase | 12.67″in (322mm) |
| Weight | – |
| Ratios | |
| Front Axle | 5.25:1 |
| Overall Front | 46.5:1 |
| Rear Axle | 6.25:1 |
| Overall Rear | 68:1 |
| Final Overdrive | 37% |
| Completion Level | Kit* |
*NOTE: RC Kits are an unassembled Remote Control Model that requires assembly, electronics, and other provided items. Photos of the assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Product Manual
This product was added to our catalog on October 25, 2023
