High-Performance Customizable RC Builders Kit
The VRD Straight Axle 4×4 1/10 Rock Crawler Builders Kit by Vanquish is an unassembled kit designed for enthusiasts looking to craft their own custom rock crawler. This high-performance kit includes meticulously engineered components such as the VFD transmission and F10 straight axles, ensuring both durability and smooth operation. While wheels, tires, body, and bumpers are not included, the kit offers a comprehensive platform for building a competition-ready vehicle with versatile customization options.
About the VRD Builders Kit

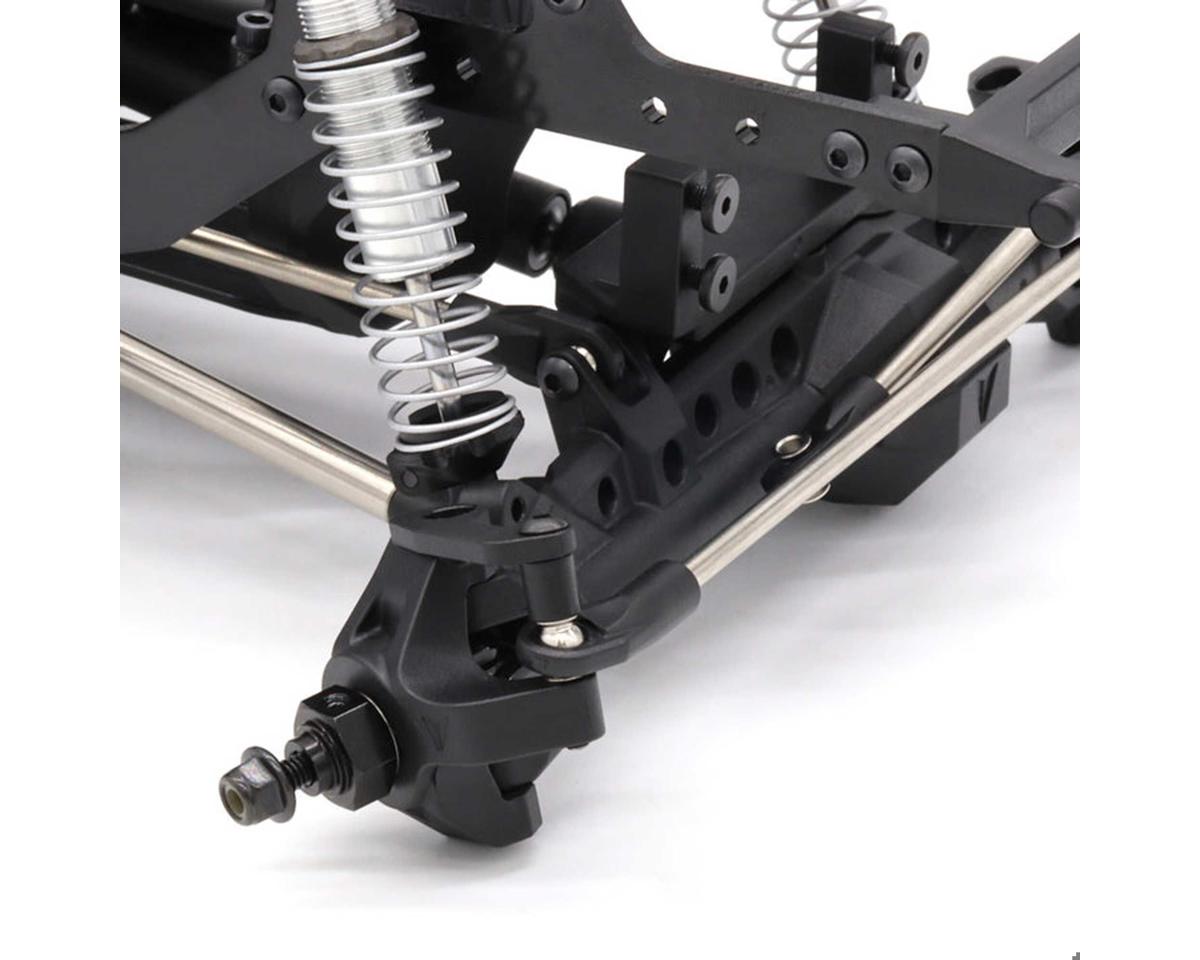

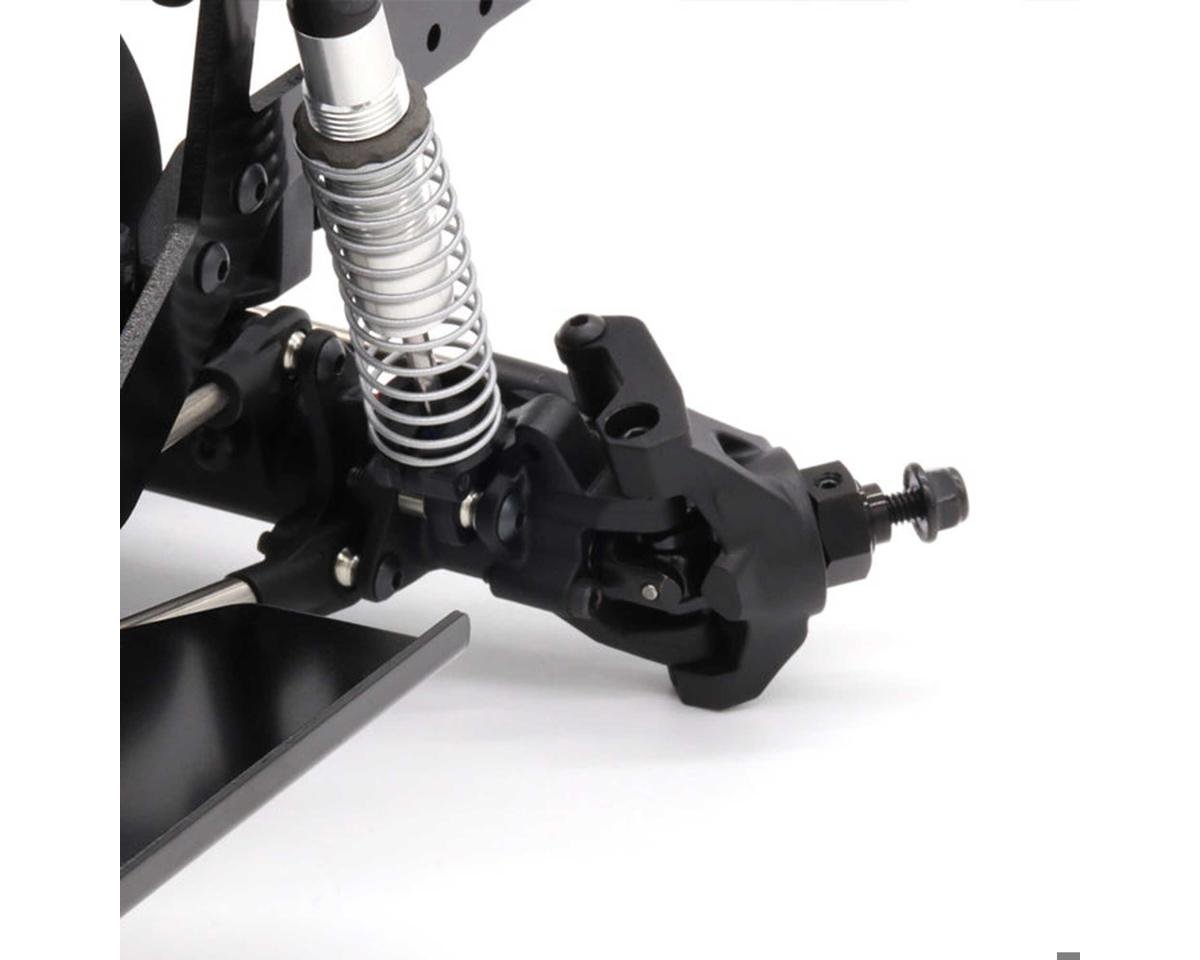

F10 Axles
The F10 straight axles in this kit are a standout feature, known for their exceptional durability and precision engineering. These axles are designed with a high clearance layout, minimizing pumpkin size and maximizing strength around critical areas like the C-hub and knuckle. The innovative design ensures smooth performance and reliability, making them a top choice among rock crawling enthusiasts.

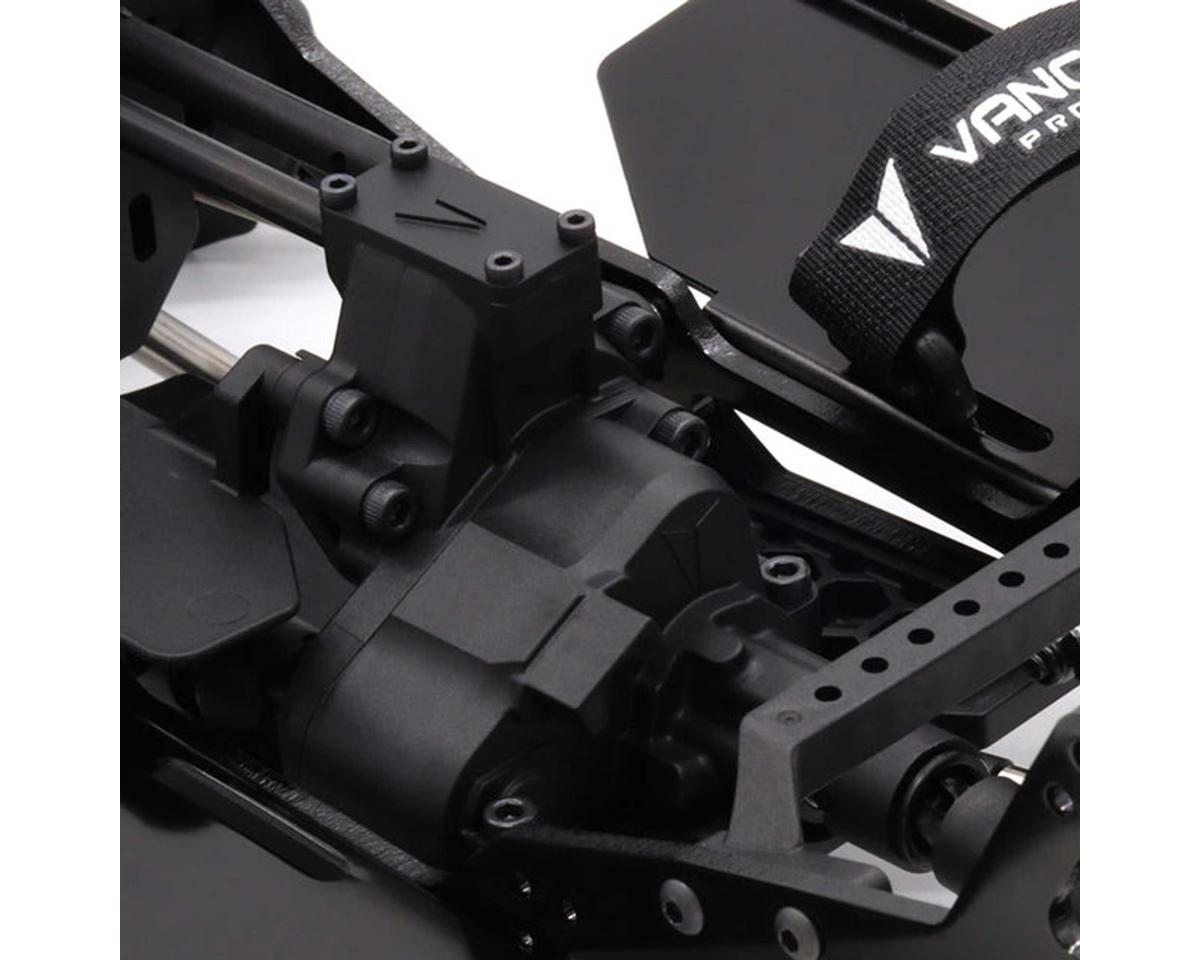

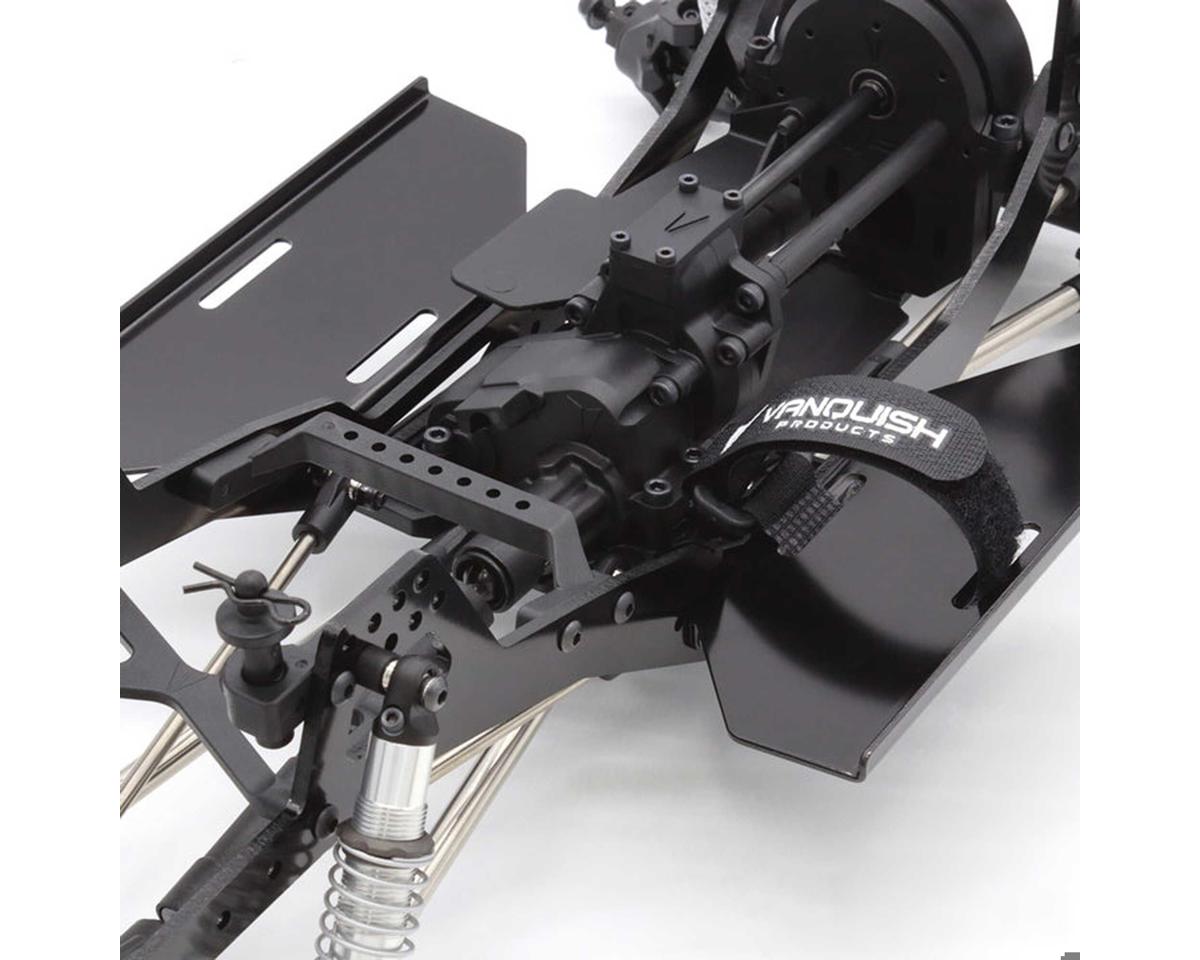

VFD Transmission
At the heart of the VRD Builders Kit is the VFD transmission, renowned for its versatility and proven performance. This transmission offers a low and forward motor position, enhancing weight distribution for improved handling and climbing ability. With a 6.5% overdrive, it optimizes turning and climbing without stressing the electronics, making it a robust and reliable choice for any terrain.

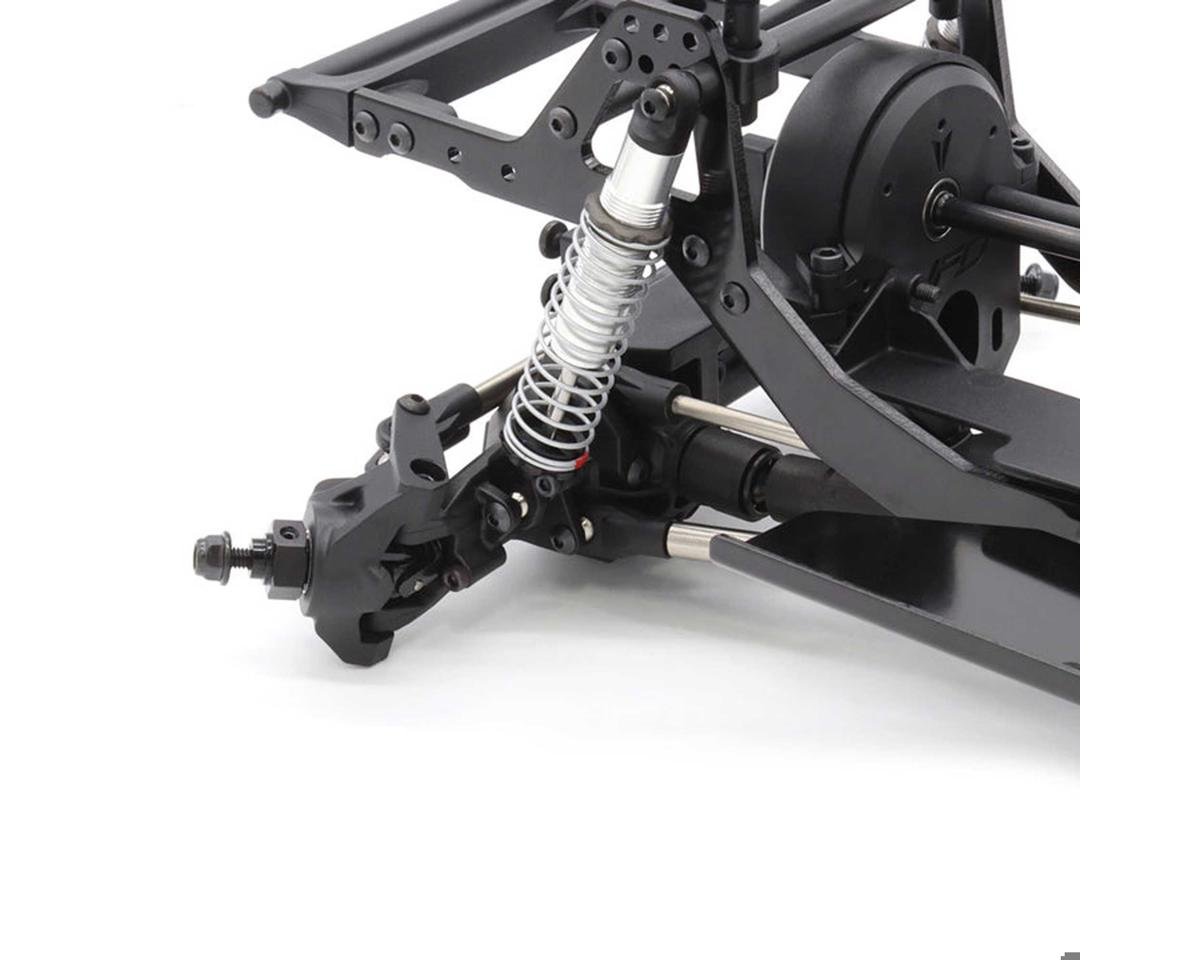

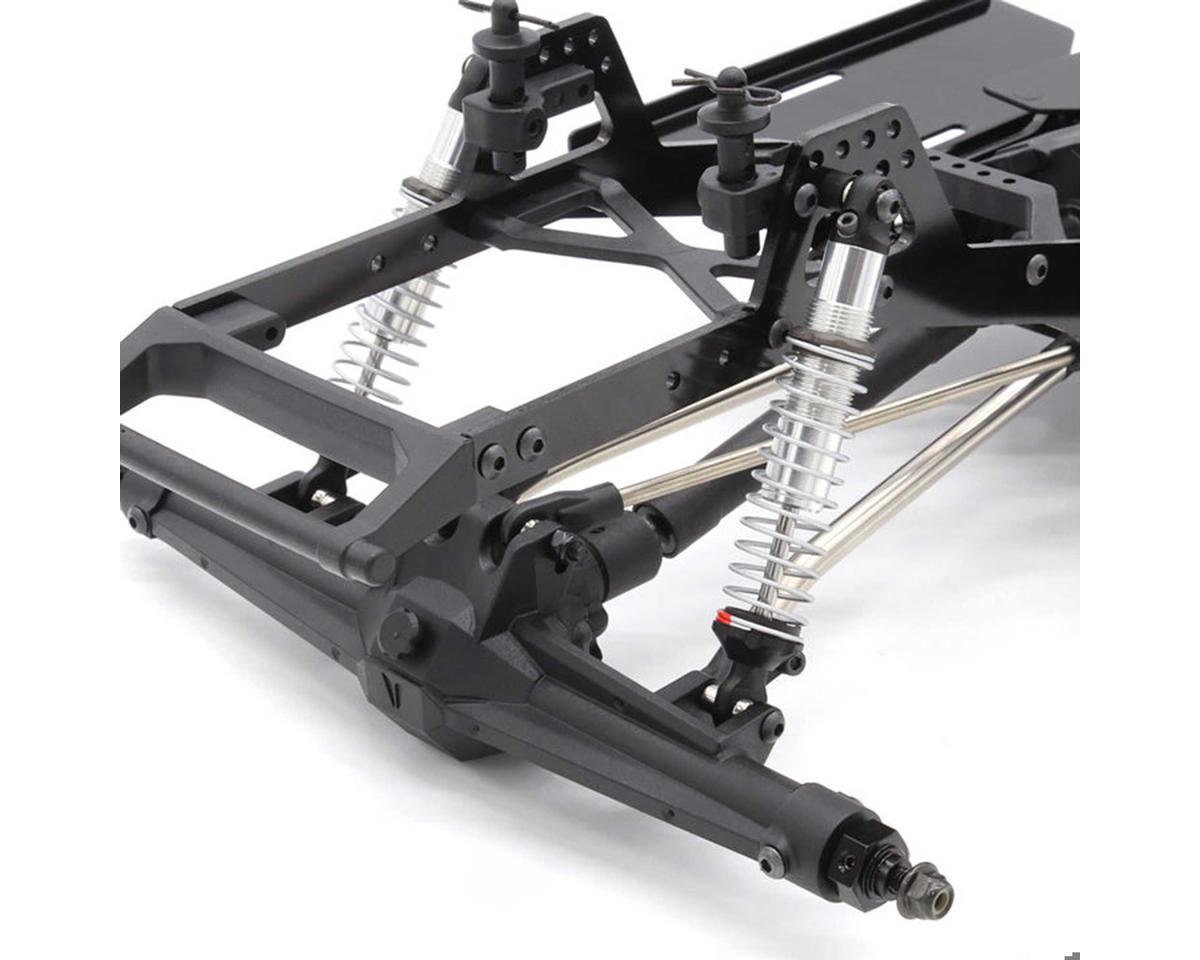

Chassis & Suspension
The VRD chassis is designed with a focus on functionality and performance, featuring a molded chassis with multiple shock and body mounting options. The suspension system includes Incision 90mm S8E shocks with 8mm bore aluminum threaded bodies and stainless steel links, providing both durability and adjustability. This setup allows builders to fine-tune their vehicle’s performance, ensuring it can tackle even the most challenging terrains with ease.
Features:
- Unassembled and customizable builders kit
- Durable F10 straight axles
- VFD transmission with 6.5% overdrive
- Low and forward motor position
- High clearance axle design
- Equipped with Incision 90mm S8E shocks
- Stainless steel suspension links
- Adjustable multi-point body mounting system
- Chromoly universal axle shafts
- Sintered Metal 30T Ring Gear
Includes:
- (1) VRD Straight Axle 4×4 1/10 Rock Crawler Builders Kit
Needed To Complete:
- (1) Battery (35x35x100mm Maximum)
- (1) Compatible Battery Charger
- (1) ESC
- (1) 540 Motor
- (1) 25T Steering Servo
- (1) Transmitter & Receiver Combo
- (4) Tires (1.9×4.75″ Recommended)
- (4) 1.9″ Vanquish or SLW Hub Compatible Wheels
- (1) 1/10 Body
- Paint for Body
- Tools for Assembly
Specifications:
| Scale | 1/10 |
|---|---|
| Drive | 4WD |
| Power Source | Electric |
| Length | – |
| Wheelbase | 12.5in (318mm) |
| Width | 7.17in (182mm) |
| Height | – |
| Weight | – |
| Pinion Gear | 13T |
| Spur Gear | 56T |
| Front Gear Ratio | 47.6:1 |
| Rear Gear Ratio | 50.8:1 |
| Assembly Level | Kit* |

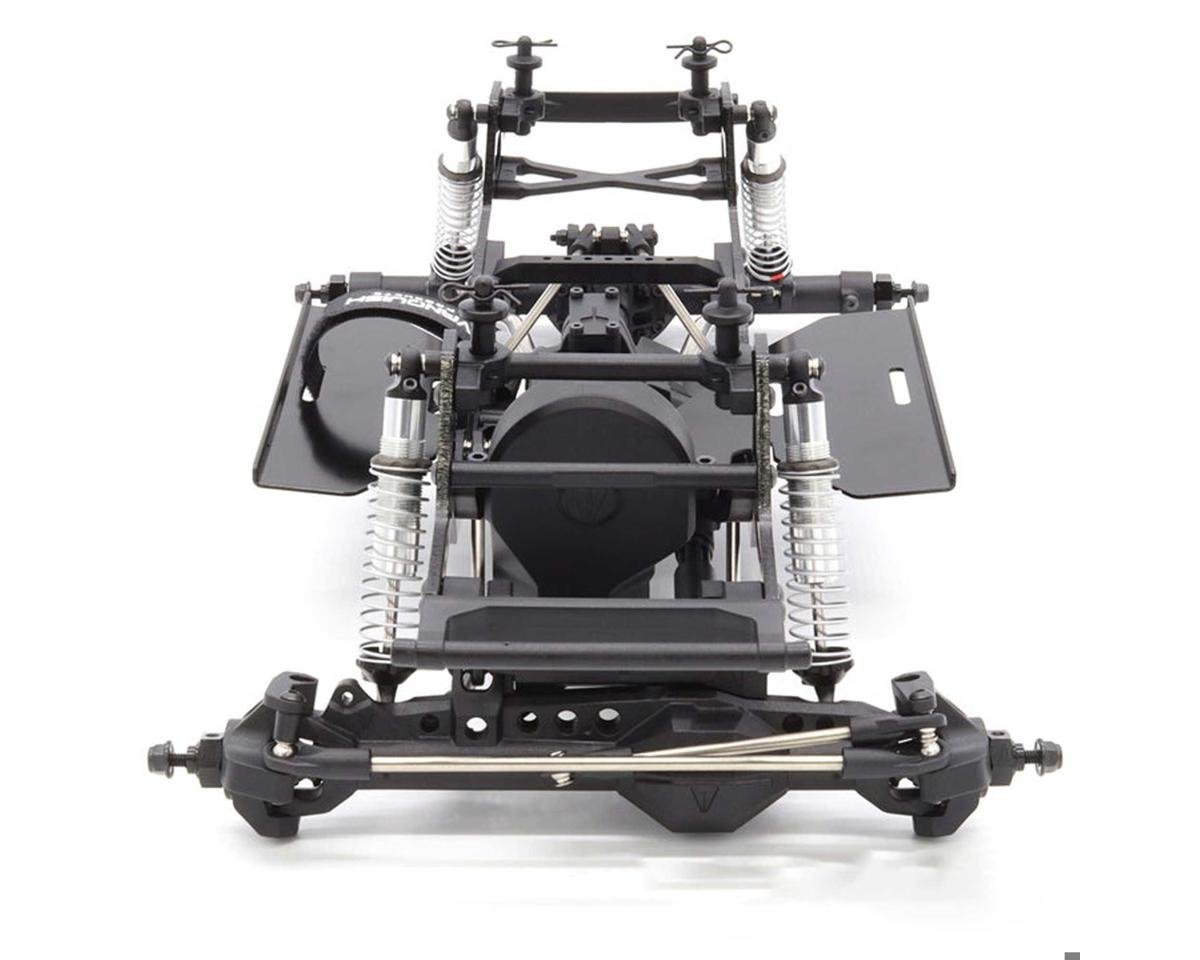

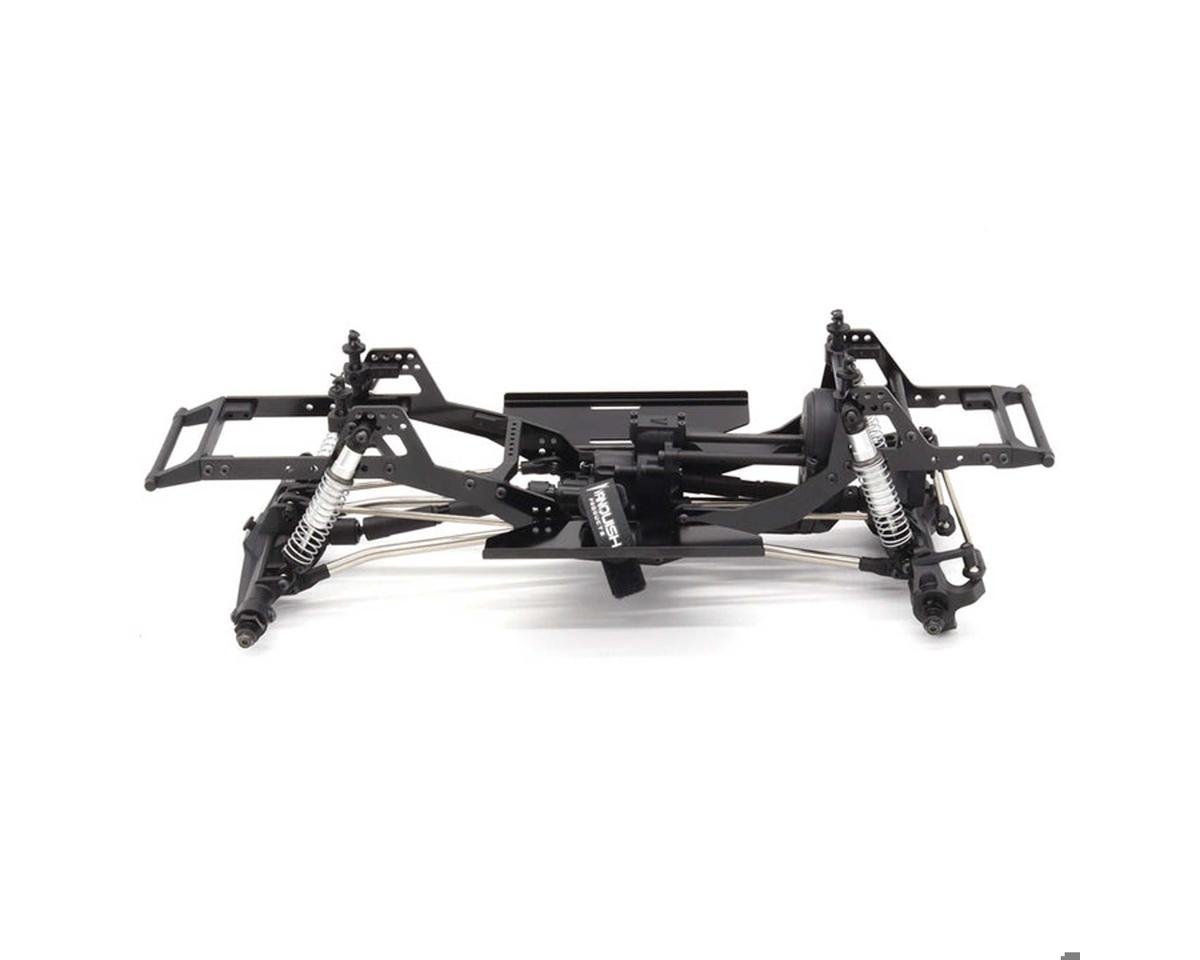

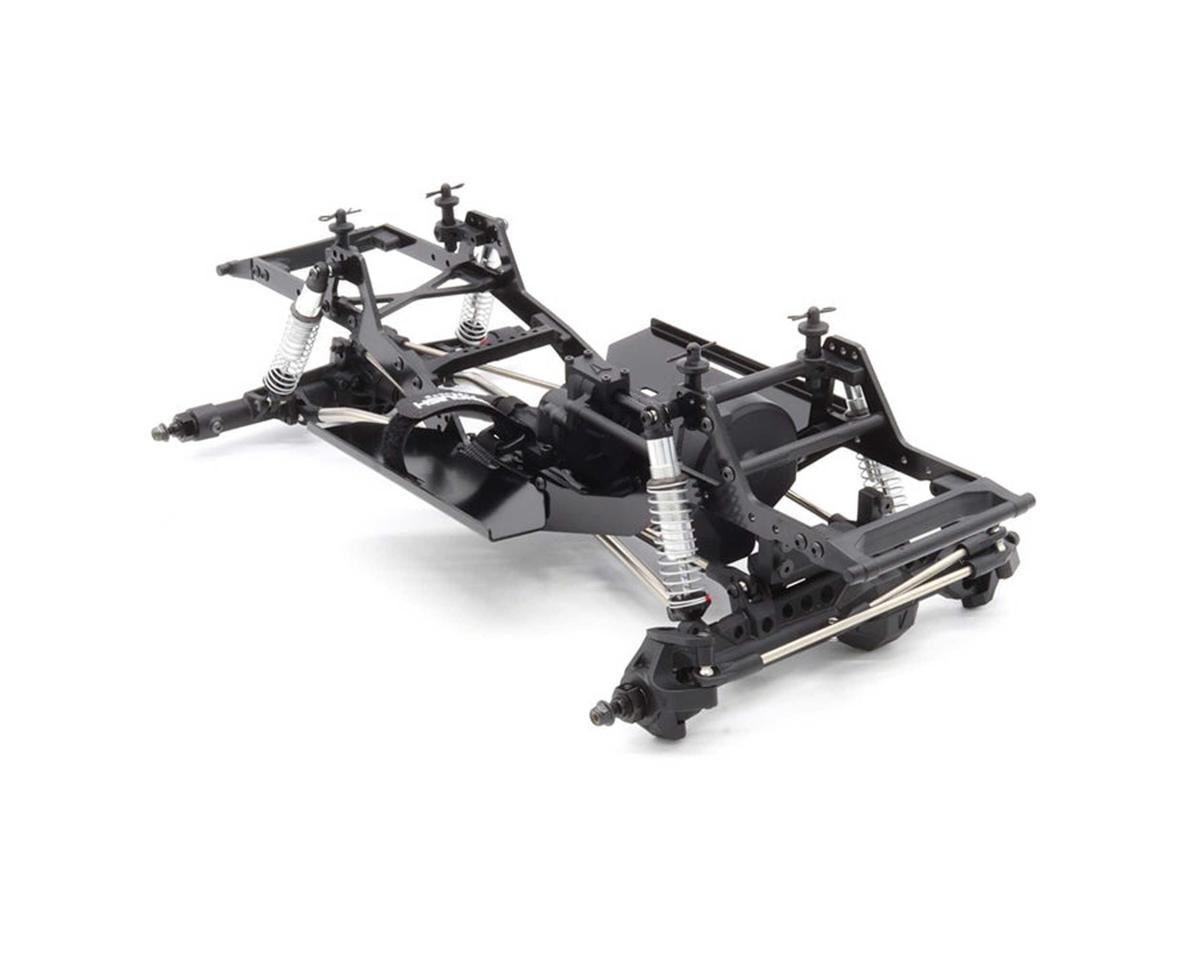

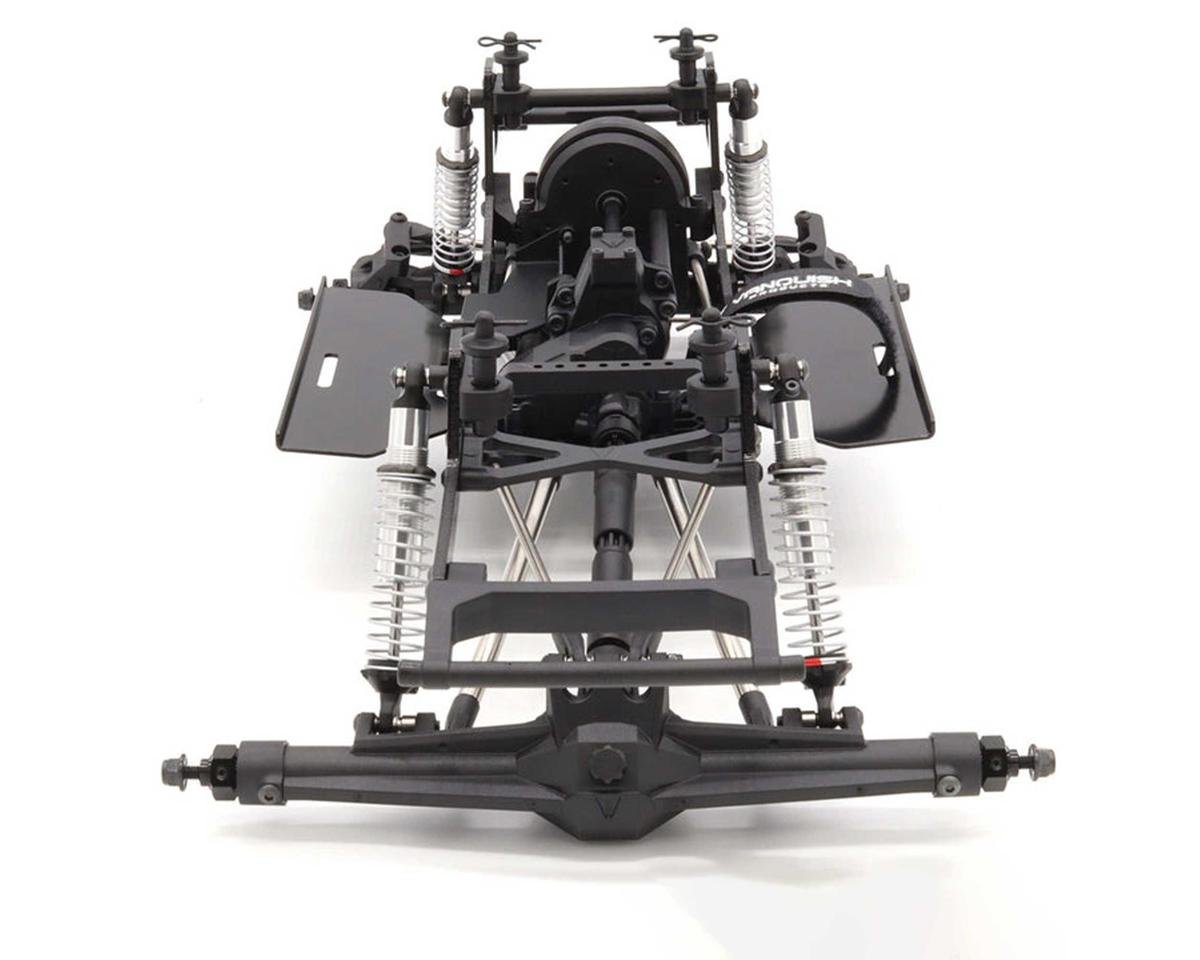

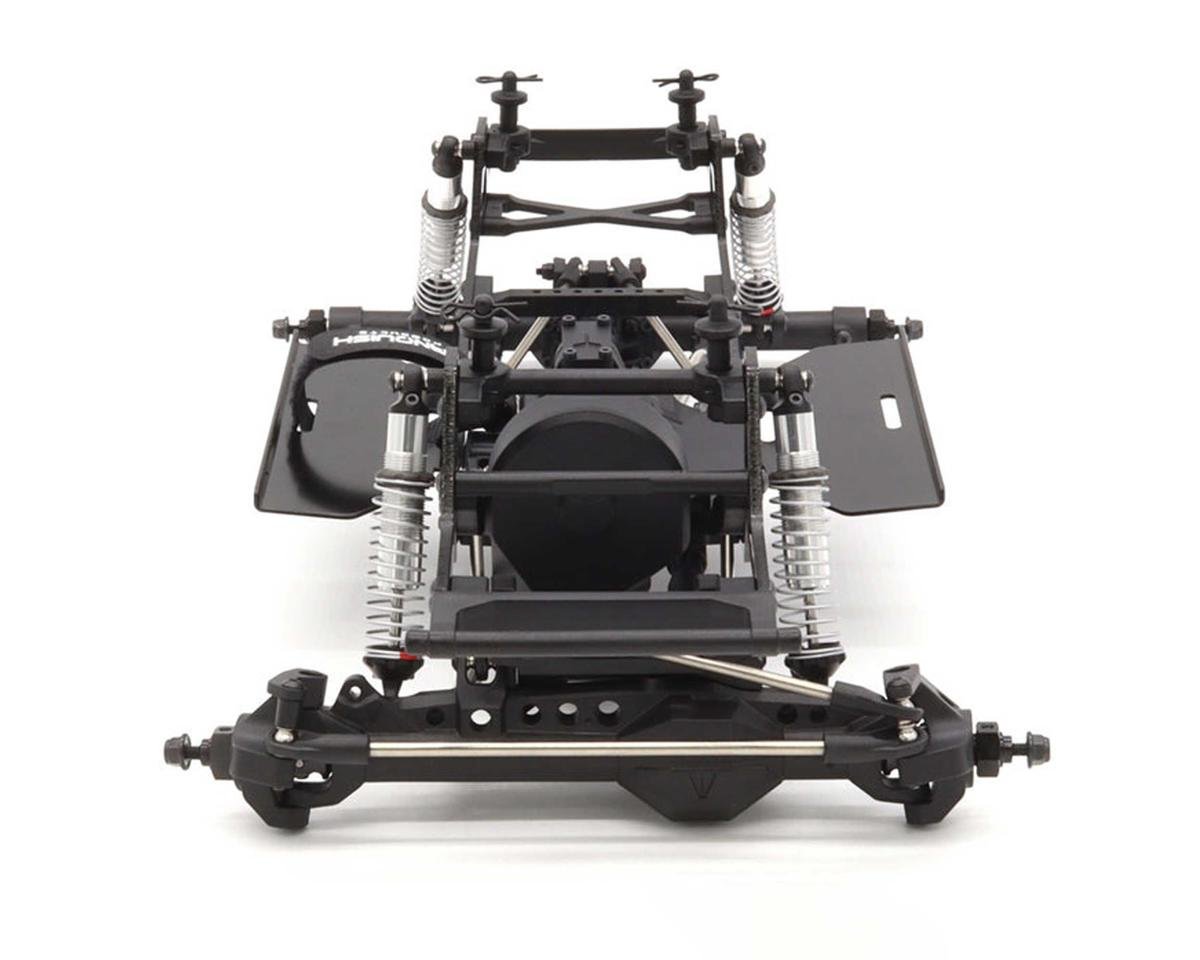

*Tech Note: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
This product was added to our catalog on July 31, 2024
